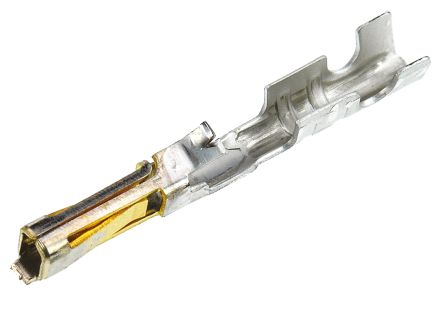

16-02-0088
| 制造商 | Molex, LLC |
| 描述 | Crimp term,22-24AWG,Selective gold,reel Headers & Wire Housings SL TERM 22-24G FEM Reel of 20000 Contact SKT Crimp ST Cable Mount Reel CRIMP TERMINAL, FEMALE, 22-24AWG CONTACT, FEMALE, 24-22AWG, CRIMP CRIMP, RECEPTACLE, 24-22AWG, REEL Molex SL 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0016020088 70058-0026 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 15mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.005 | 包装方式 | Reel |
| 导线线规 | 24-22 | 端接方式 | Crimp |
| 连接器类型 | :Contact, Crimp | 接触镀层 | Gold over Nickel |
| 触头材料 | Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 70058 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :SL Series Connectors |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0050579006
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .100 SINGLE Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RCPT, 6POS, 2.54MM

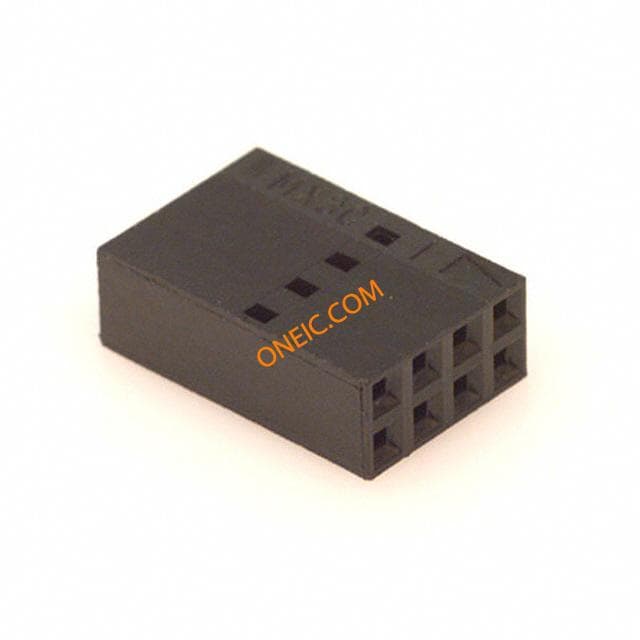

22-55-2081
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 DUAL Headers & Wire Housings HSG 8P DUAL ROW NON-POLARIZED WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM Housing; 8; 0.399 in.; 0.3 in.; UL Listed Molex SL 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳
63811-8700
Molex
Crimpers 22-24 CRIMP TOOL Hand crimp tool for SL terminal Hand Crimp Tool With Type Handtool Connector, tool, 22-24 awg Molex HANDTOOL 系列 接端 压接工具 , 适用于0.20 → 0.33 mm² 线规格

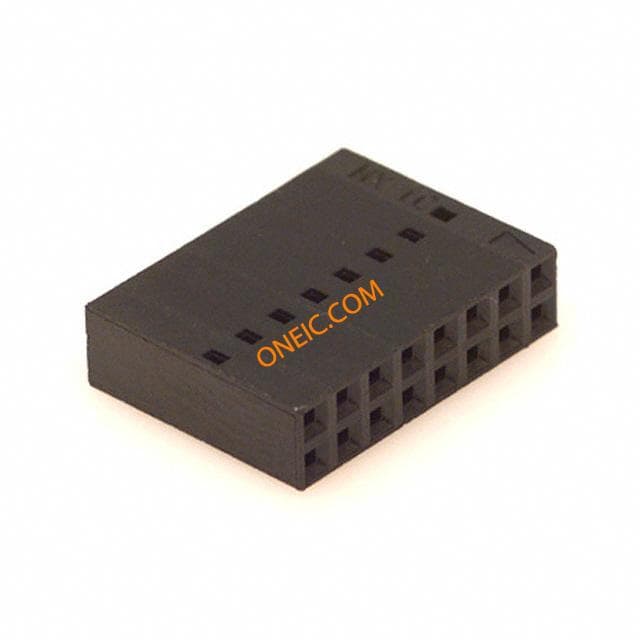

22-55-2161
