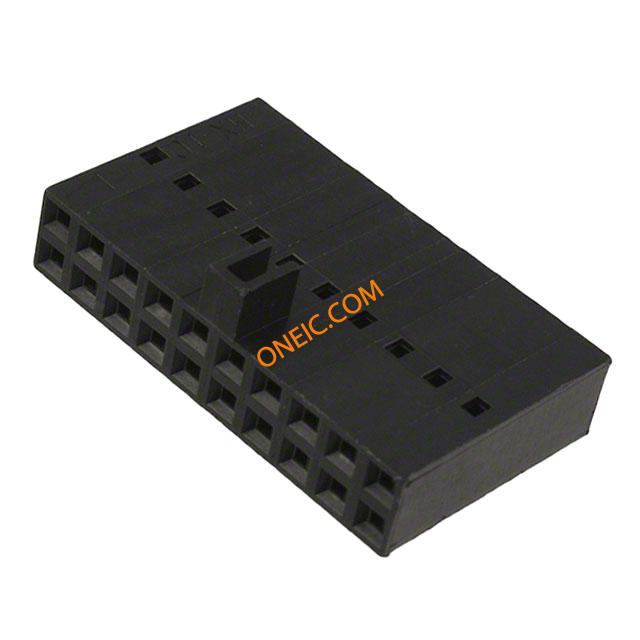

0022552202
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 20POS .100 |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 8.1 mm |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 壳体材料 | Polyester |
| 总长度 | 25.37 mm | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Polarizing Key |
| 行业别名 | 22-55-2202, 22552202 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

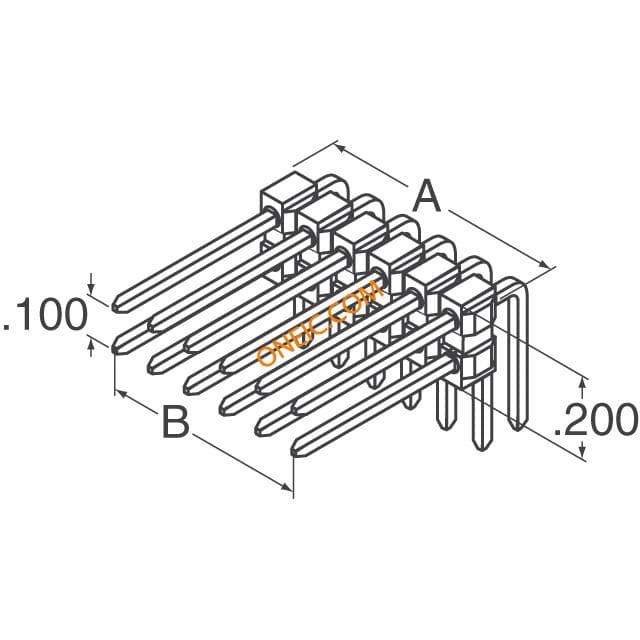

0717640020
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 20POS .100 R/A TIN
0717640120
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR DUAL 20POS .100 R/A AU

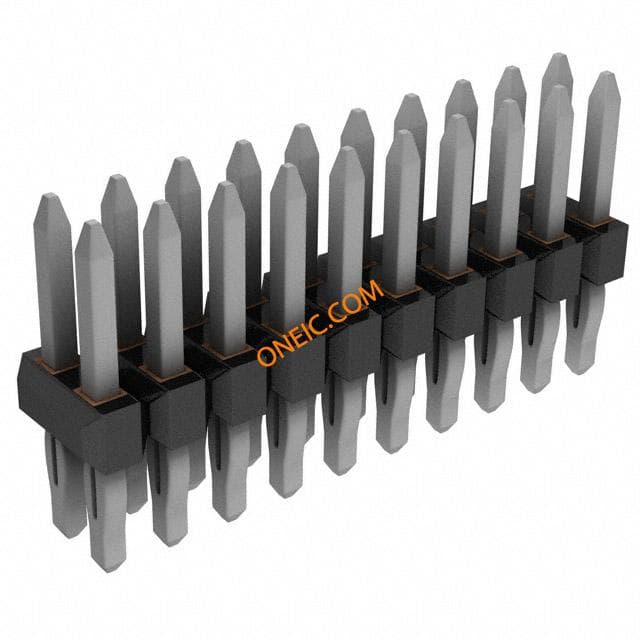

0751020087
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 20POS .100 SRT TIN

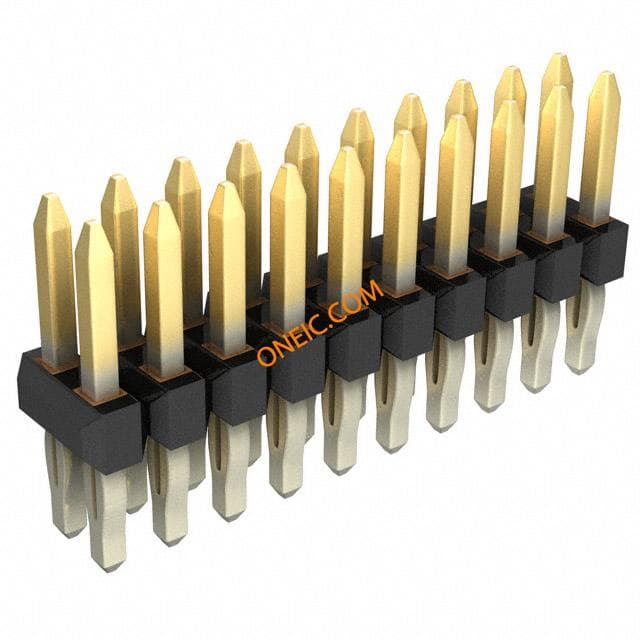

0751020048
molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 20POS .100 SRT AU
70247-2051
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
70247-2052
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY
15-42-7020
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA Tin 20Ckt CONN HEADER 20POS .100 R/A TIN
15-41-8020
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 30 SAu 20Ckt CONN HEADER 20POS .100 R/A GOLD
15-29-7020
Molex
Headers & Wire Housings CGrid RA Shrd Hdr VerA 15 SAu 20Ckt CONN HEADER 20POS .100 R/A GOLD
70246-2021
Molex
Headers & Wire Housings 20 POSITION HEADER CONN HEADER 20POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70247-2002
Molex
Headers & Wire Housings C-GRID 20 CKT SHROUD CONN HEADER 20POS .100 R/A GOLD
70247-2001
Molex
Headers & Wire Housings SHRD HDR DUAL RA 20P low profile CONN HEADER 20POS .100 R/A GOLD

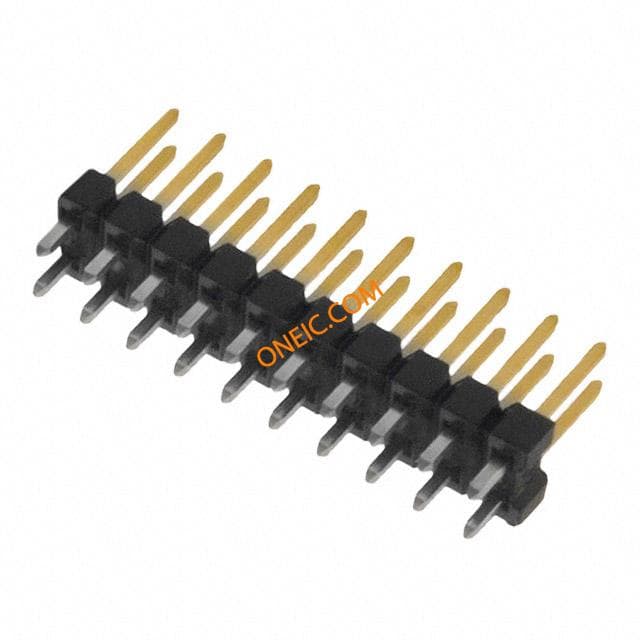

0010897202
Molex
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bag CONN HDR DUAL 20POS .100 SRT AU

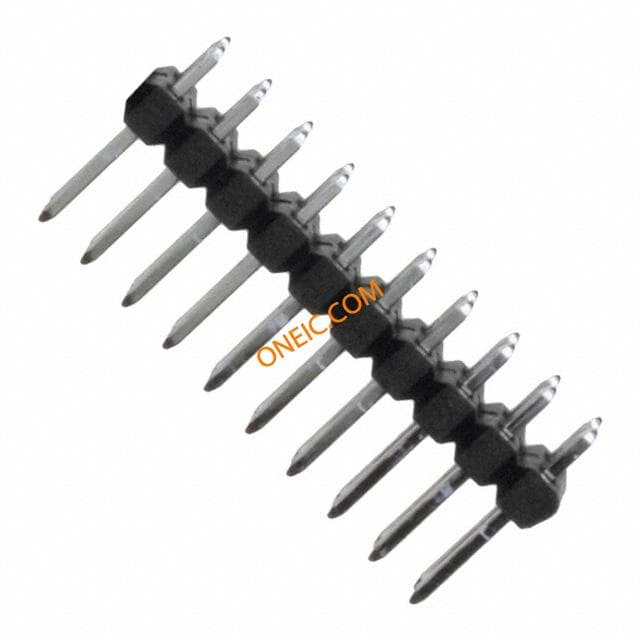

0010897201
