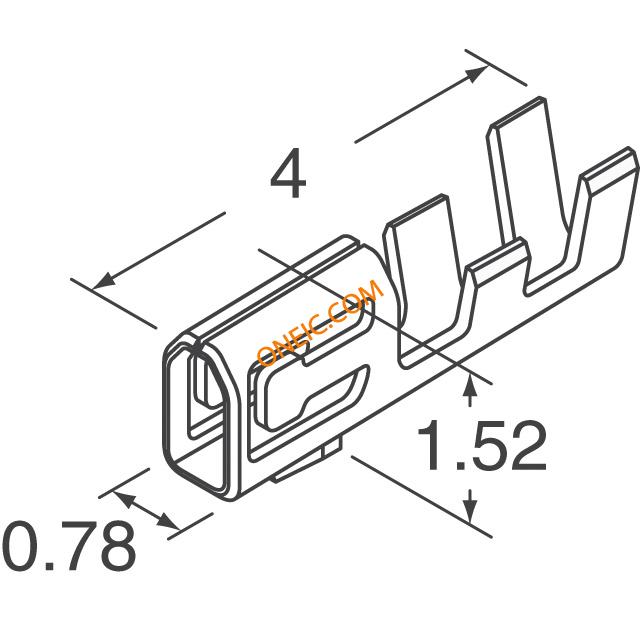

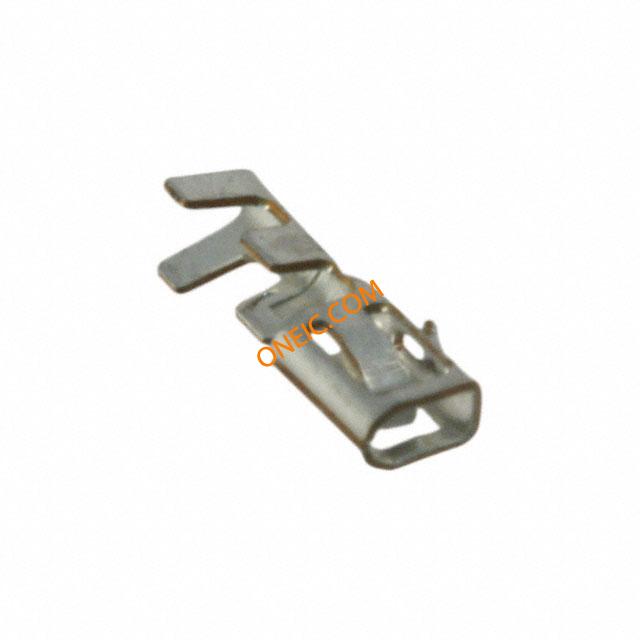

5013340100
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 1 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 深度 | 1.07 | 高度 | 1.25 |
| 重量 | 0.05 g | 包装方式 | Bag |
| 导线线规 | 28-32 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 柱间距 | 1mm | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Tin | 触头材料 | Phosphor Bronze |
| 总长度 | 4 | 连接器 - 电缆 | contact |
| 接触件端接 | Crimp | 接触镀层厚度 | 39µin (1.00µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| 连接器性别 | SKT | 系列 | Pico-Clasp™ 501334 |
| 适配器系列 | PICO-CLASP | 单元数量 | 1 |
环境参数
| 工作温度 | 85 | ||
相关型号

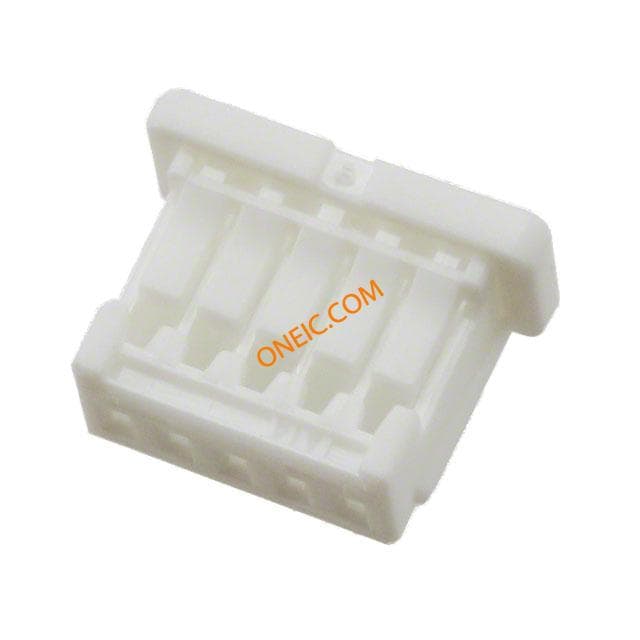

5013300500
molex
Conn Housing RCP 5 POS 1mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 5POS 1.0W/B1-RowRecHsg5Ckt Plug; wire-board; female; PIN:5; w/o terminals; 1mm; for cable
5013300600
molex
Conn Housing RCP 6 POS 1mm Crimp ST Bag Conn Housing RCP 6 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 6POS 1.0W/B1-RowRecHsg6Ckt Plug; wire-board; female; PIN:6; w/o terminals; 1mm; for cable

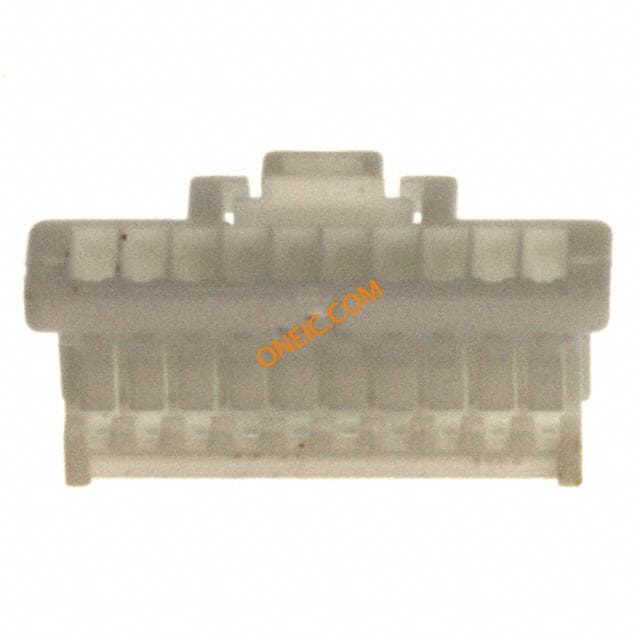

501330-1000
molex
Conn Housing RCP 10 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 10POS 10w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 10Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 10 Circuits HOUSING, 1.0MM, PICO-CLASP, 10WAY Crimp Housing for Pitch1 mm Poles 1 x 10 Pico-Clasp™, 501330-1000, Molex Molex PICO-CLASP 系列 1mm 节距 10 路 直 母 压接连接器外壳
501330-1400
molex
Conn Housing RCP 14 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 14POS Headers & Wire Housings 1.0 WtB 14Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 14 Circuits HOUSING, 1.0MM, PICO-CLASP, 14WAY Crimp Housing for Pitch1 mm Poles 1 x 14 Pico-Clasp™, 501330-1400, Molex
5019390300
Molex
Conn Housing RCP 3 POS 1mm Crimp ST Bag 1-ROW REC HSG POSITIVE LOCK 3CKT 1.0W/B1-RowRecHsgPositiveLock3Ckt
5019390400
Molex
Conn Housing RCP 4 POS 1mm Crimp ST Bag CONN 1.0 W/B RCPT HSG 4CKT

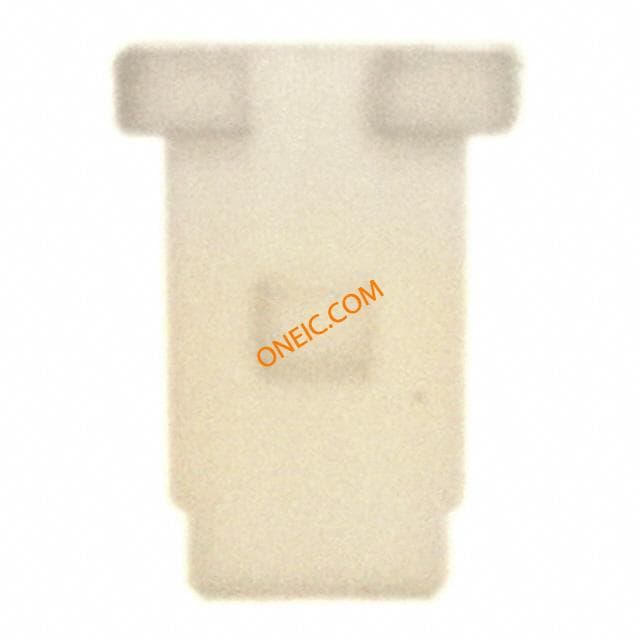

501330-0200
molex
Conn Housing RCP 2 POS 1mm Crimp ST Bag CONN RCPT 1MM VERT 2POS 2w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 2Ckt Female Housing 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Friction Lock, 2 Circuits HOUSING, 1.0MM, PICO-CLASP, 2WAY Crimp Housing Pitch1 mm Poles 1 x 2 Pico-Clasp™, 501330-0200, Molex Molex PICO-CLASP 系列 1mm 节距 2 路 直 母 压接连接器外壳
0638191500
Molex
Hand Crimp Tool for 1.00mm Wire-to-Board Crimp Terminal, 28-32 AWG Wire TOOL HAND CRIMP 28-32AWG Tool: for crimping; terminals; 80÷40um2; 32÷28AWG

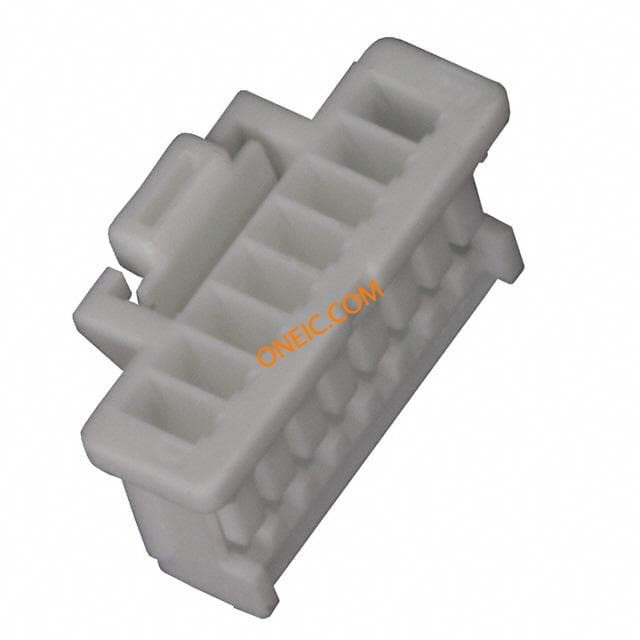

5013300800
Molex
Conn Housing F 8 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 8POS 1.0W/B1-RowRecHsg8Ckt Plug; wire-board; female; PIN:8; w/o terminals; 1mm; for cable

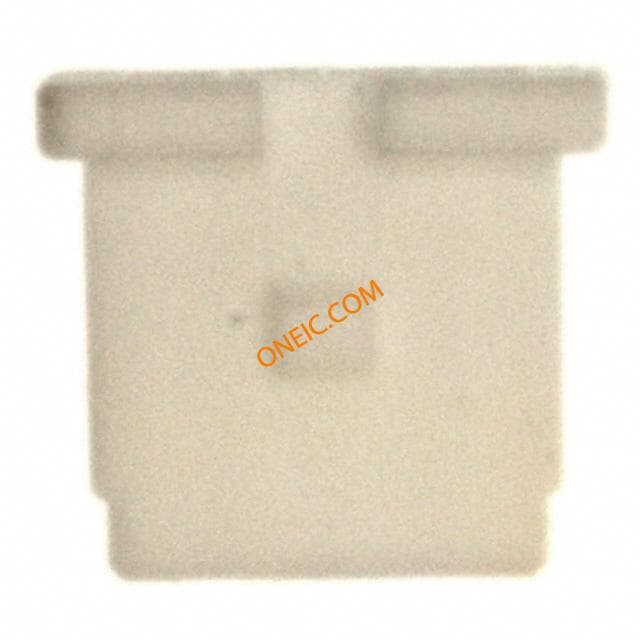

5013300400
Molex Inc
CONN RCPT 1MM VERT 4POS Conn Housing F 4 POS 1mm Crimp ST Cable Mount Bag 1.0W/B1-RowRecHsg4Ckt Plug; wire-board; female; PIN:4; w/o terminals; 1mm; for cable
5019390500
Molex Inc
1.0 W/B 1-ROW REC HSG 5CKT 1.0W/B1-RowRecHsgPositiveLock5Ckt
501330-0900
Molex Connector Corporation
CONN RCPT 1MM VERT 9POS Headers & Wire Housings 1.0 WtB 9Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 9 Circuits HOUSING, 1.0MM, PICO-CLASP, 9WAY Crimp Housing for Pitch1 mm Poles 1 x 9 Pico-Clasp™, 501330-0900, Molex

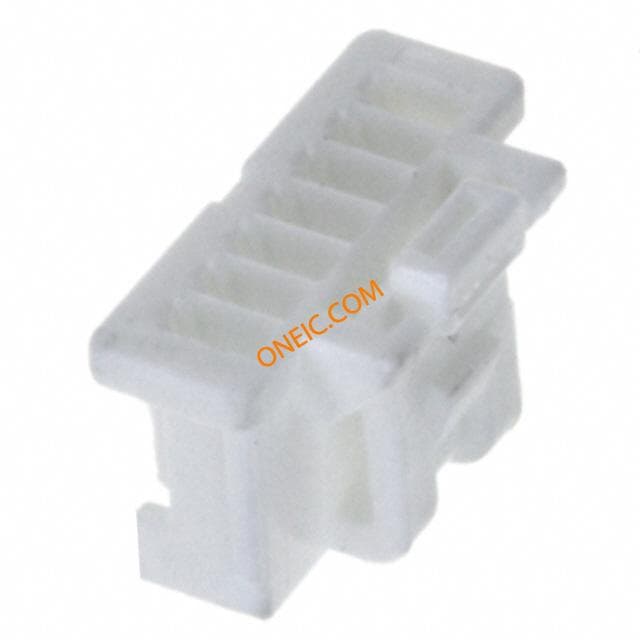

501330-0700
Molex Connector Corporation
CONN RCPT 1MM VERT 7POS Conn Housing F 7 POS 1mm Crimp ST Cable Mount Bag HOUSING, 1.0MM, PICO-CLASP, 7WAY Crimp Housing for Pitch1 mm Poles 1 x 7 Pico-Clasp™, 501330-0700, Molex
501330-1100
Molex Connector Corporation
CONN RCPT 1MM VERT 11POS Headers & Wire Housings 1.0 WtB 11Ckt Female Housing Vert Conn Housing F 11 POS 1mm Crimp ST Cable Mount Bag HOUSING, 1.0MM, PICO-CLASP, 11WAY Crimp Housing for Pitch1 mm Poles 1 x 11 Pico-Clasp™, 501330-1100, Molex
501330-1500
Molex Connector Corporation
CONN RCPT 1MM VERT 15POS Headers & Wire Housings 1.0 WtB 15Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 15 Circuits HOUSING, 1.0MM, PICO-CLASP, 15WAY Crimp Housing for Pitch1 mm Poles 1 x 15 Pico-Clasp™, 501330-1500, Molex

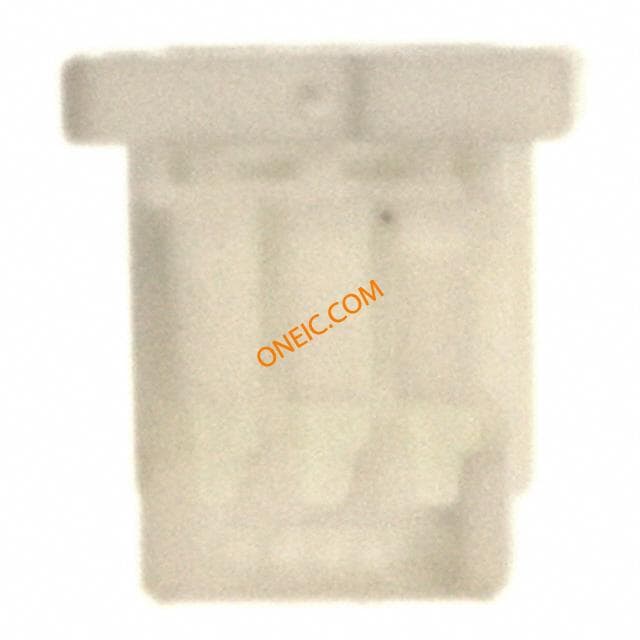

501330-0300
Molex Connector Corporation
CONN RCPT 1MM VERT 3POS 3w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 3Ckt Female Housing Conn Housing F 3 POS 1mm Crimp ST Cable Mount Bag HOUSING, 1.0MM, PICO-CLASP, 3WAY Crimp Housing forPico-Clasp™, 501330-0300, Molex Molex PICO-CLASP 系列 1mm 节距 3 路 直 母 压接连接器外壳
501330-1200
Molex Connector Corporation
CONN RCPT 1MM VERT 12POS 12w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 12Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 12 Circuits HOUSING, 1.0MM, PICO-CLASP, 12WAY Crimp Housing for Pitch1 mm Poles 1 x 12 Pico-Clasp™, 501330-1200, Molex Molex PICO-CLASP 系列 1mm 节距 12 路 直 母 压接连接器外壳

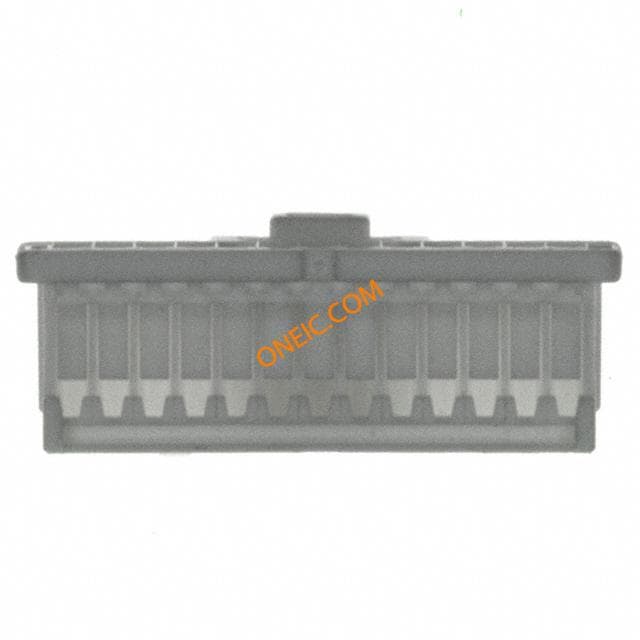

501330-1300
Molex Connector Corporation
CONN RCPT 1MM VERT 13POS Headers & Wire Housings 1.0 WtB 13Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 13 Circuits HOUSING, 1.0MM, PICO-CLASP, 13WAY Crimp Housing for Pitch1 mm Poles 1 x 13 Pico-Clasp™, 501330-1300, Molex
