点击放大查看

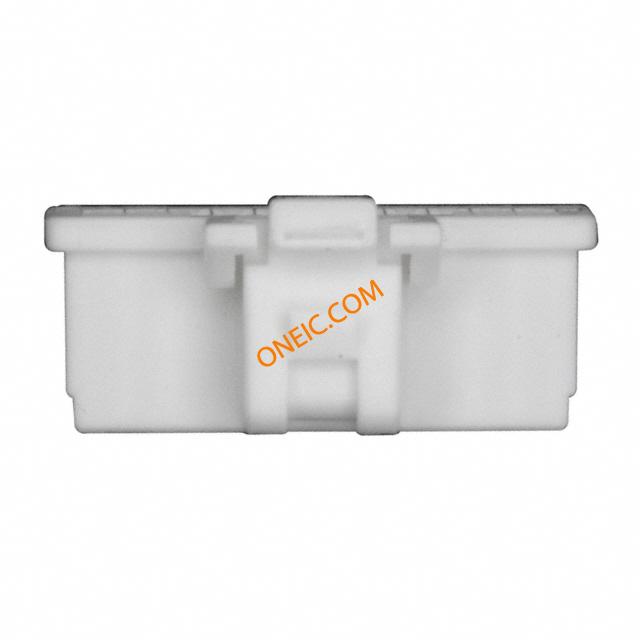

501330-1100
| 制造商 | Molex, LLC |
| 描述 | CONN RCPT 1MM VERT 11POS Headers & Wire Housings 1.0 WtB 11Ckt Female Housing Vert Conn Housing F 11 POS 1mm Crimp ST Cable Mount Bag HOUSING, 1.0MM, PICO-CLASP, 11WAY Crimp Housing for Pitch1 mm Poles 1 x 11 Pico-Clasp™, 501330-1100, Molex |
| 分类 |
商业参数
| 商标名 | Pico-Clasp | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :MOLEX - Pico-Clasp 501330 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | White | 间距 | 0.039" (1.00mm) |
| 重量 | 0.05 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 11 |
| 接触件端接 | Crimp | 位数 | 11 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | 501330 | 产品子类型 | Receptacles / Sockets - Housings |
文档与媒体
相关型号
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

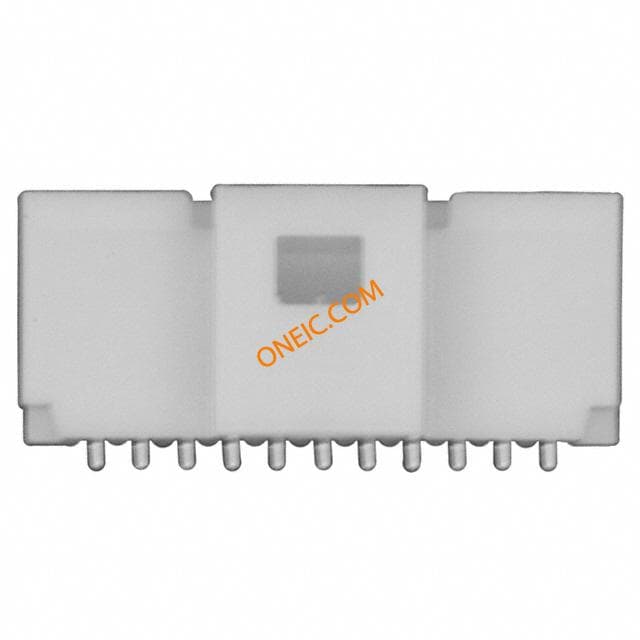

501568-1107
Molex Connector Corporation
CONN HEADER 1MM 11POS SMD R/A Headers & Wire Housings 1.0 WtB 11Ckt R/AWaferAssyEmbsTpPk Conn Shrouded Header HDR 11 POS 1mm Solder RA SMD Embossed T/R

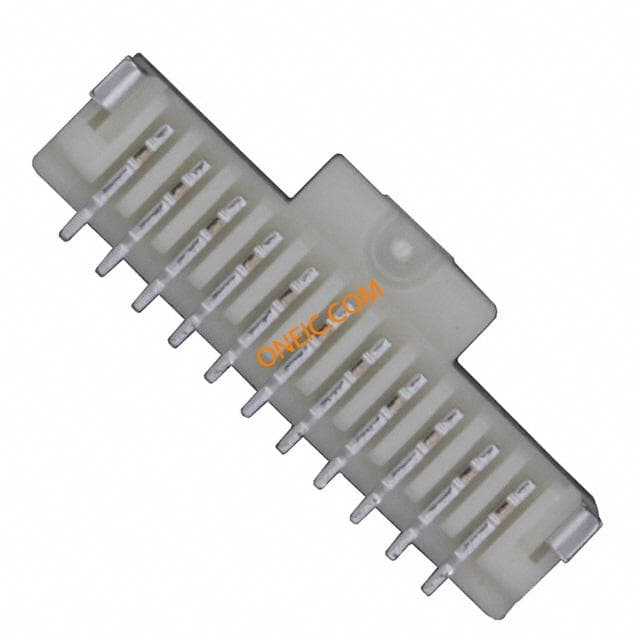

501331-1107
