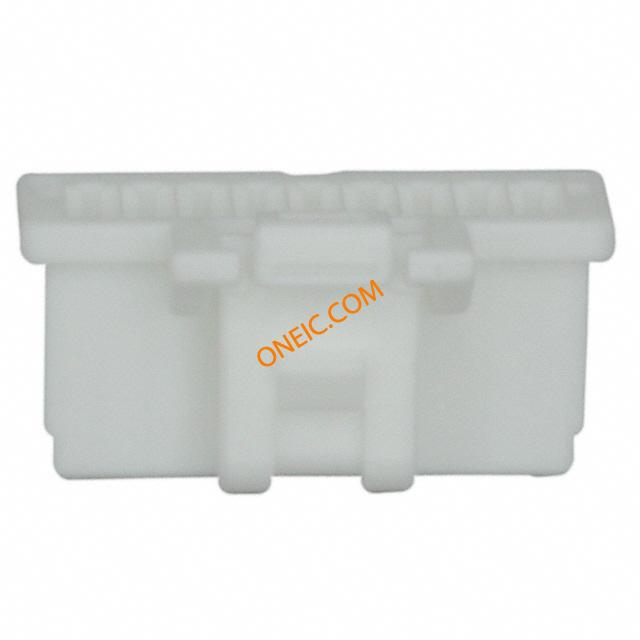

501330-0900
| 制造商 | Molex, LLC |
| 描述 | CONN RCPT 1MM VERT 9POS Headers & Wire Housings 1.0 WtB 9Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 9 Circuits HOUSING, 1.0MM, PICO-CLASP, 9WAY Crimp Housing for Pitch1 mm Poles 1 x 9 Pico-Clasp™, 501330-0900, Molex |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Pico-Clasp | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :MOLEX - Pico-Clasp 501330 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | White | 间距 | 0.039" (1.00mm) |
| 重量 | 0.05 | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | 501330 | 产品子类型 | Receptacles / Sockets - Housings |
文档与媒体
PDF 文档
相关型号

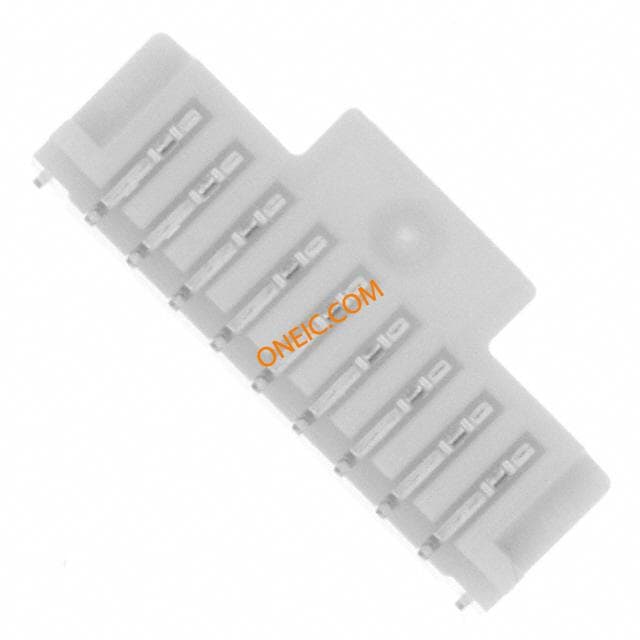

501568-0907
molex
Conn Shrouded Header HDR 9 POS 1mm Solder RA SMD Embossed T/R CONN HEADER 1MM 9POS SMD R/A Headers & Wire Housings 1.0 WtB 9Ckt R/AWaferAssyEmbsTpPk
¥2.3120
详情
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable
¥0.2740
详情

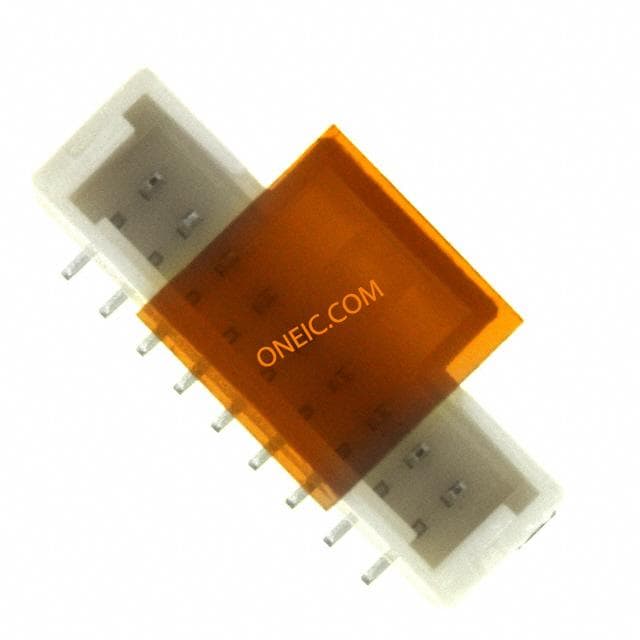

501331-0907
Molex Connector Corporation
CONN HEADER 1MM 9POS SMD TIN Headers & Wire Housings 1.0 WtB 9Ckt StrWaferAssyEmbsTpPk Conn Shrouded Header HDR 9 POS 1mm Solder ST SMD Embossed T/R HEADER, 1.0MM, PICO-CLASP, 9WAY Header, straight Pitch1 mm Poles 1 x 9 Pico-Clasp™, 501331-0907, Molex
¥1.9652
详情
