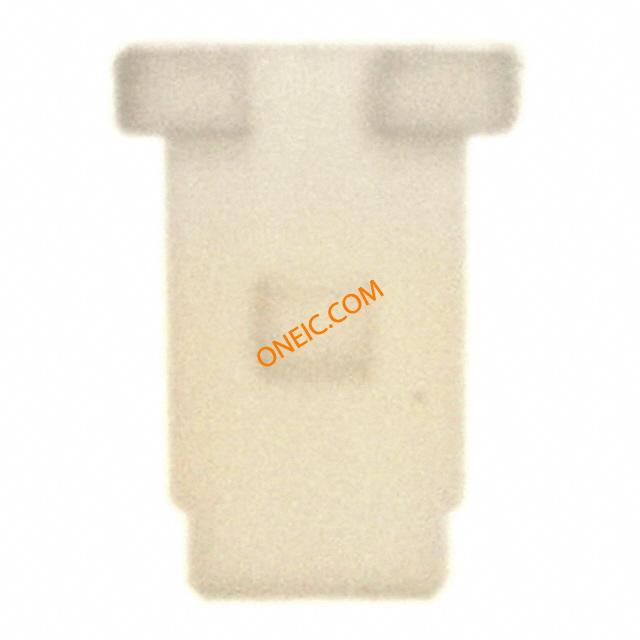

501330-0200
| 制造商 | |
| 描述 | Conn Housing RCP 2 POS 1mm Crimp ST Bag CONN RCPT 1MM VERT 2POS 2w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 2Ckt Female Housing 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Friction Lock, 2 Circuits HOUSING, 1.0MM, PICO-CLASP, 2WAY Crimp Housing Pitch1 mm Poles 1 x 2 Pico-Clasp™, 501330-0200, Molex Molex PICO-CLASP 系列 1mm 节距 2 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Pico-Clasp | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :MOLEX - Pico-Clasp 501330 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | White | 深度 | 5mm |
| 间距 | 1 mm | 宽度 | 2.94mm |
| 长度 | 3.7mm | 重量 | 0.005 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 501330 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Pico-Clasp Wire-to-Board Connector | ||
相关型号
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

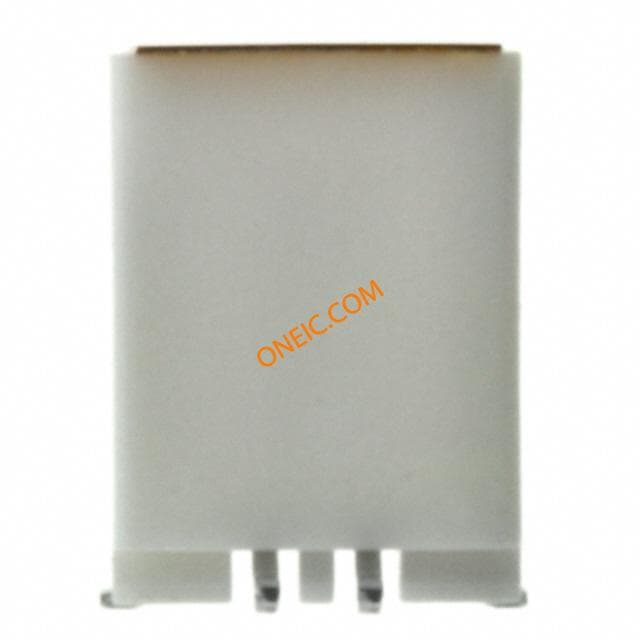

5013310207
Molex
Conn Shrouded Header HDR 2 POS Solder ST SMD Embossed T/R CONN HEADER 1MM 2POS SMD TIN 1.0WtB1-RowStrWaferAssyEmbsTpPkg2Ckt Socket; wire-board; male; PIN:2; 1mm; SMT; PICO-CLASP; 50V; 1A
501331-0207
Molex Connector Corporation
CONN HEADER 1MM 2POS SMD TIN Molex 501331 Series 1mm Pitch 2 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 2Ckt StrWaferAssyEmbsTpPk Conn Shrouded Header HDR 2 POS Solder ST SMD Embossed T/R HEADER, 1.0MM, PICO-CLASP, 2WAY Header Pitch1 mm Poles 1 x 2 Pico-Clasp™, 501331-0207, Molex Molex PICO-CLASP 系列 1mm节距 2路 (2排) 直 PCB 针座, 焊接端接, 1A , 表面安装

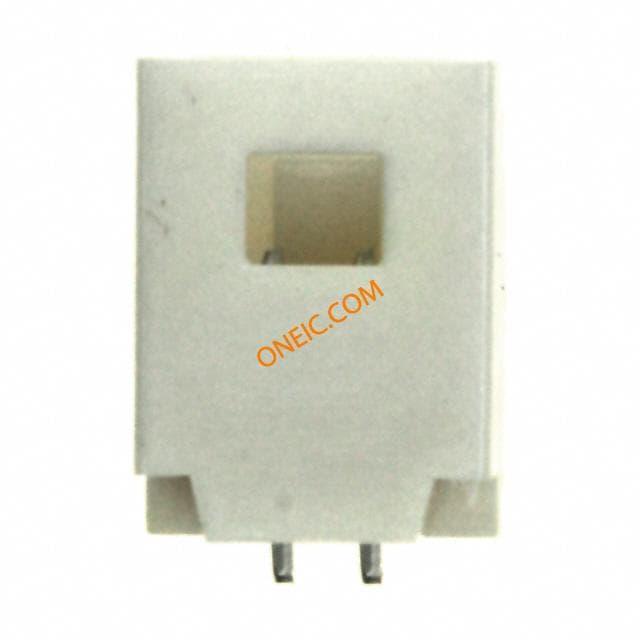

5015680207
