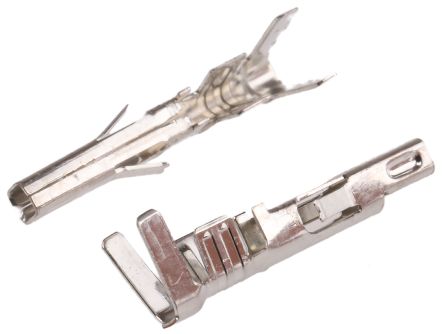

45750-3112
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings MF PLUS HCS CRIMP TE RM. FEMALE 16 GA TIN female terminal, 16AWG, tin, loose Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 16 AWG, CRIMP MF PLUS HCS CRIMP TERM. FEMALE 16 GA TIN MFPLUSHCSCRIMPTERM.FEMALE16GATIN Crimp socket 13 A Female 16 AWG, 45750-3112, Molex Molex Mini-Fit Plus 系列 母 压接接线端子, 压接, 镀锡镀镍触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit HCS | 零件号别名 | 0457503112 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 13 A |
机械参数
| 长度 | 14.83 mm | 重量 | 0.00015 |
| 包装方式 | Bag | 绝缘类型 | Not Insulated |
| 导线线规 | 16 | 端接方式 | Crimp |
| 接触镀层 | Tin | 触头材料 | Copper, Nickel, Silicon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | ||
产品信息
| 连接器性别 | Female | 系列 | 45750 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :5557 Jr., 30067 TPA, 42474 BMI Panel Mount, 43760, 44516 BMI Panel Mount Slide-N-Lock |
环境参数
| 插拔次数 | :30 | ||
