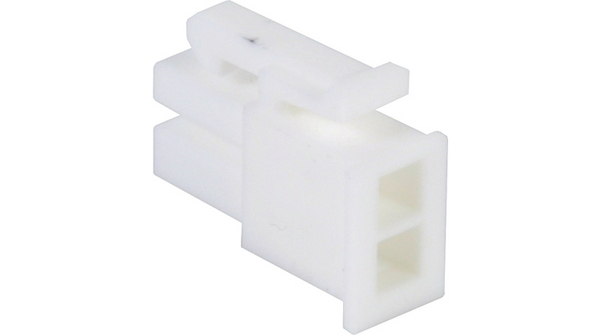

39-01-3028
| 制造商 | Molex, LLC |
| 描述 | Housing 4.20mm Dual row receptacle,2w Headers & Wire Housings RECEPT 2P 94V-0 side tabs Conn Housing RCP 2 POS Crimp ST Cable Mount Bag HOUSING, RCPT , DUAL ROW, 2WAY, CRIMP Conn; Rect; Socket Hsg; 4.20mm Pitch; 2Cir; Dual; Mini-Fit Jr; Nylon Crimp housing Pitch4.2 mm Poles 2 x 1 Mini-Fit Jr, 39-01-3028, Molex Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039013028 5557-02R1-210 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 11500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 12 A, 9 A |
机械参数
| 深度 | 19.6mm | 间距 | 4.2mm |
| 宽度 | 7.39mm | 长度 | 14.4mm |
| 重量 | 0.00072 | 材料（通用） | :Nylon |
| 导线线规 | 20-16 | 安装类型 | Straight |
| 安装样式 | Free Hanging | 排数 | 2 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Natural |
| 触点数 | 2 | 位数 | :2 |
产品信息
| 连接器性别 | Female | 系列 | 5557 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Mini-Fit Jr. Receptacle | ||
环境参数
| 工作温度 | :105°C | ||
