39-01-2120
| 制造商 | Molex, LLC |
| 描述 | 12 way receptacle,Mini-Fit Jr Headers & Wire Housings 12 CKT RCPT HOUSING Conn Housing RCP 12 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 12WAY RECEPTACLE HOUSING; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039012120 5557-12R |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 13 A | ||
机械参数
| 深度 | 19.6mm | 间距 | 4.2mm |
| 宽度 | 15.1mm | 长度 | 26.4mm |
| 重量 | 0.0247 | 材料（通用） | :Clear nylon |
| 安装类型 | Straight | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 位数 | :12 |
产品信息
| 连接器性别 | Female | 系列 | 5557 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | Mini-Fit Jr. Receptacle | ||
文档与媒体
相关型号
46018-1541
Molex
Headers & Wire Housings MF PLUS HMC CRIMP Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 20-18 AWG, CRIMP Mini-Fit® High Cycle female Crimp terminal, 18-20 AWG Reeled
76650-0163
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH 600V 24-18 WIRE SIZE KIT CONN MINI-FIT RTC I/O Connectors MINI-FIT RTC KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,12,24,4,6,8POS 8-12A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 4.2MM PITCH ... Kit Description:Vertical Header and ReceptacleKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:134 MINI-FIT RTC PWR CONNECTOR KIT VERT HEADER & RECEPT
39-01-2126
Molex Connector Corporation
CONN PLUG 12POS PANEL MOUNT 4.20mm,housing,MiniFit,plug,DR,12w Headers & Wire Housings 12 CKT PLUG HOUSING Conn Housing M 12 POS 4.2mm Crimp ST Panel Mount Bag PLUG, MINI-FIT, DUAL ROW, PNL MT, 12WAY PLUG HOUSING-PANEL MOUNT; 94V-0; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 公 压接连接器外壳
39-30-0120
Molex Connector Corporation
CONN HEADER 12POS 4.2MM R/A TIN Molex 5569 Series 4.2mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 6A Headers & Wire Housings 12 CKT R/A HEADER Conn Power HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port Bag HEADER, MINI-FIT, R/A, DUAL ROW, 12WAY Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 6A , 通孔
39-28-8120
Molex Connector Corporation
CONN HEADER 12POS 4.2MM VERT TIN Molex 5566 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 6A Headers & Wire Housings 12 CKT VERT HEADER Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Bag HEADER, MINI-FIT, DUAL ROW, 12WAY Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 6A , 通孔
46207-0012
Molex Connector Corporation

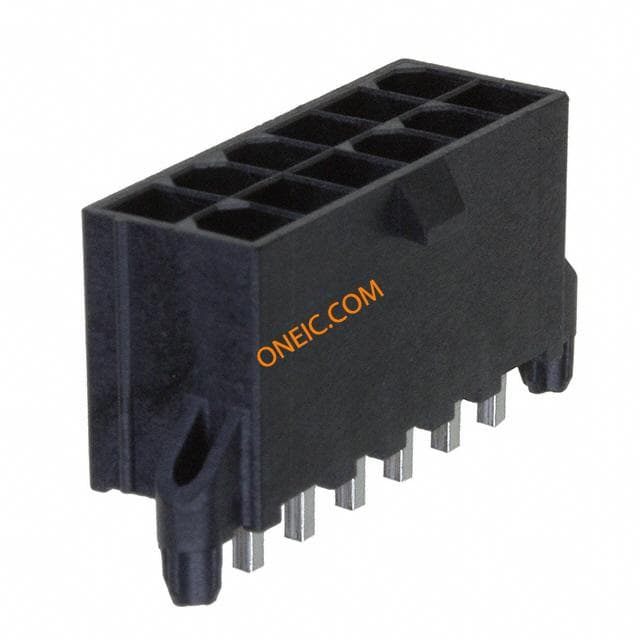

CONN HEADER 12POS 4.2MM VERT TIN Molex 46207 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MINIFIT RTC HDR 12P DR V TIN .062 Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔
46015-1203
Molex
Molex 46015 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 11A Headers & Wire Housings MF+ HCS VERT HDR DR 12CKT V-0 PEG TIN Male header Pitch4.2 mm Poles 2 x 6 Mini-Fit® Plus HCS, 46015-1203, Molex Molex Mini-Fit Plus 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 11A , 通孔
76650-3009
Molex
Mini-Fit Jr connector kit UL94V-0 WTB KIT, MINI-FIT JR, 4.2MM, 251PCS Molex MINI-FIT JR. 系列 线对板套件 , 内含插座、通孔直角管座、通孔垂直管座 x 251
39-01-2120
Molex
12 way receptacle,Mini-Fit Jr Headers & Wire Housings 12 CKT RCPT HOUSING Conn Housing RCP 12 POS 4.2mm Crimp ST Bag RECEPTACLE, MINI-FIT, 12WAY RECEPTACLE HOUSING; 94V-2; 12 CIRCUITS Molex MINI-FIT JR. 系列 2 行 4.2mm 节距 12 路 直 母 压接连接器外壳
76650-3001
Molex

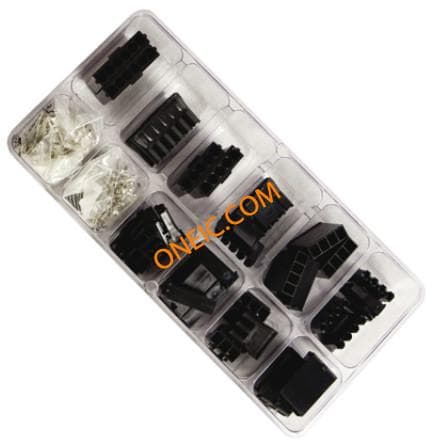

Mini-Fit Sr. Power Connector Kit Design kit Mini-Fit Sr, 76650-3001, Molex Molex MINI-FIT SR. 系列 连接器套件
