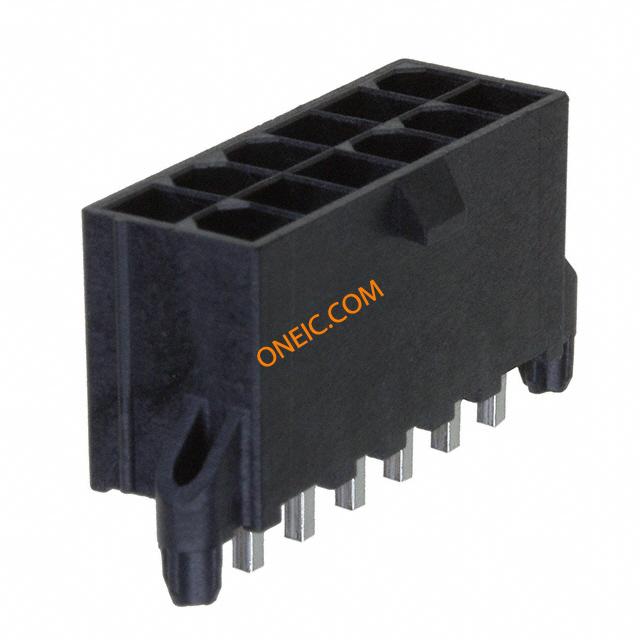

点击放大查看
46207-0012
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12POS 4.2MM VERT TIN Molex 46207 Series 4.2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 12A Headers & Wire Housings MINIFIT RTC HDR 12P DR V TIN .062 Molex MINI-FIT JR. 系列 4.2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 12A , 通孔 |
| 分类 |
商业参数
| 商标名 | Mini-Fit RTC | 零件号别名 | 0462070012 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2160 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V ac/dc | 最大额定电流 | 12A |
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 方向 | 直 |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Brass Alloy | 壳体材料 | Thermoplastic |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Wire to Board | 系列 | 46207 |
| 覆盖范围 | 覆盖 | 产品特性 | Board Guide |
| CAD图纸 | 3D CAD Model | 产品子类型 | Header Assemblies |
| 基础产品编号 | 46207 | 加载位置数 | All |
