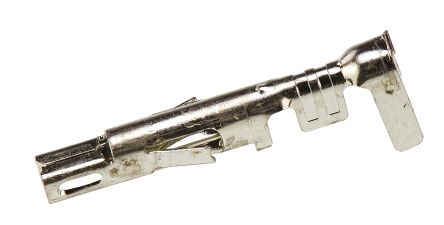

点击放大查看
45750-1112
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings MF PLUS HCS CRIMP TE RM. FEM 18-20 GA TIN female terminal, 18-20AWG, tin, loose Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, 18-20AWG, MINI-FIT HCS MF PLUS HCS CRIMP TERM. FEM 18-20 GA TIN MFPLUSHCSCRIMPTERM.FEM18-20GATIN Crimp socket 13 A Female 20...18 AWG, 45750-1112, Molex Molex Mini-Fit Plus 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit HCS | 零件号别名 | 0457501112 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | :10mohm |
| 击穿电压 | :1500V | 最大额定电流 | 13 A |
机械参数
| 长度 | 14.83 mm | 重量 | 0.00015 |
| 包装方式 | Bag | 绝缘类型 | Not Insulated |
| 导线线规 | 20-18 | 端接方式 | Crimp |
| 触点尺寸 | :18 | 接触镀层 | Tin |
| 触头材料 | Copper, Nickel, Silicon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :20AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 45750 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :5557 Jr., 30067 TPA, 42474 BMI Panel Mount, 43760, 44516 BMI Panel Mount Slide-N-Lock |
环境参数
| 插拔次数 | :75 | 工作温度 | :105°C |
