26-61-4080
| 制造商 | Molex, LLC |
| 描述 | Molex 41791 Series 3.96mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 8P GOLD FRICTION LOCK Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Bag WIRE-BOARD CONNECTOR HEADER 8POS, 3.96MM Molex KK 396 系列 3.96mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026614080 41791-0025 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 250 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 7A |
机械参数
| 间距 | 3.96mm | 重量 | 0.003 |
| 端接方式 | Solder | 基体材料 | :Polyester |
| 安装类型 | Straight | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 41791 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
文档与媒体
相关型号
0008520125
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-26AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag CONTACT, FEMALE, 26-22AWG, CRIMP

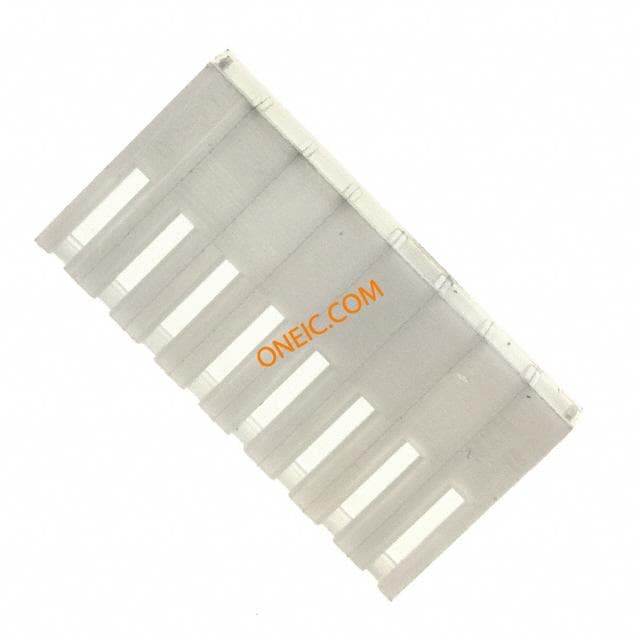

09-50-7081
Molex Connector Corporation
CONN HOUSING 8POS .156 W/O RAMP Headers & Wire Housings .156 KK HOUSING Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, 8POS, 3.96MM .156 TERMINAL HOUSING; W/O LCK RAMP; 8 CIRCUITS
08-58-0189
Molex Connector Corporation
CONN TERM FEMALE 18-20AWG GOLD Crimp Terminal,18-20 AWG,gold,bag Headers & Wire Housings SOCKET 18-24AWG BULK Contact SKT Crimp ST Cable Mount Loose Piece KK156TERMCRP18-20AWGTRIFURCONGOLD Molex KK 396, Trifurcon 系列 母 压接接线端子, 压接, 镀金镀镍触点
08-58-0126
Molex Connector Corporation
CONN TERM FEMALE 22-26AWG GOLD Crimp,3.96mm,22-26 AWG,select gold,bag Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, FEMALE, 26-22AWG, CRIMP 3.96mm pitch KK Crimp Terminal; 22-26AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点
08-50-0185
Molex Connector Corporation
CONN TERM CRIMP 22-26AWG TIN Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, FEMALE, 26-22AWG, CRIMP KK 156 TERM CRP 22-26 AWG TRIFURCON TIN
09-62-3083
Molex Connector Corporation
CONN RECEPT 8POS .156 VERT PCB Headers & Wire Housings TOP ENTRY 8P Conn Socket Strip SKT 8 POS 3.96mm Solder ST Thru-Hole Tray
08-58-0111
Molex
Crimp terminal,KK 156,6838,Au,18-20awg Headers & Wire Housings TERMINAL BULK Contact SKT Crimp ST Cable Mount Loose Piece CONTACT, FEMALE, 20-18AWG, CRIMP Trifurcon Crimp Terminal 6438, 18-20 AWG Molex KK 396, Trifurcon 系列 母 压接接线端子, 压接, 镀金镀镍触点
08-65-0115
Molex
Crimp,3.96mm,18-24 AWG,select gold,bag Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 24-18AWG, CRIMP KK 156 TERMINAL CRIMP 18-24 AWG GOLD Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点

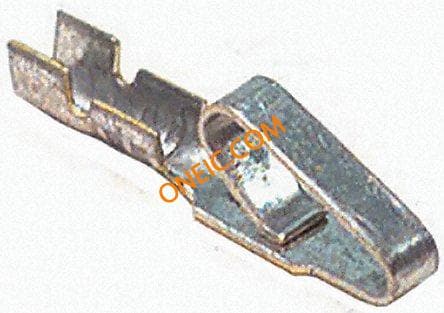

08-50-0134
