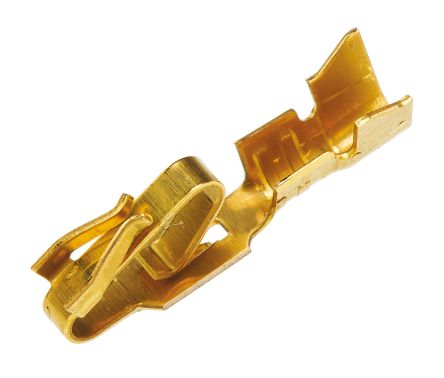

点击放大查看
08-58-0189
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 18-20AWG GOLD Crimp Terminal,18-20 AWG,gold,bag Headers & Wire Housings SOCKET 18-24AWG BULK Contact SKT Crimp ST Cable Mount Loose Piece KK156TERMCRP18-20AWGTRIFURCONGOLD Molex KK 396, Trifurcon 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008580189 6838-A(P558)L 8580189 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 6mΩ |
| 最大额定电流 | 7 A | ||
机械参数
| 导线线规 | 20-18 | 端接方式 | Crimp |
| 连接器类型 | 母座 | 接触镀层 | Gold over Nickel |
| 触头材料 | Phosphor Bronze | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 线规或范围 - AWG | 18AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 6838 |
| 产品子类型 | Contacts | 基础产品编号 | 6838 |
环境参数
| 工作温度 | +75°C | ||
文档与媒体
