点击放大查看

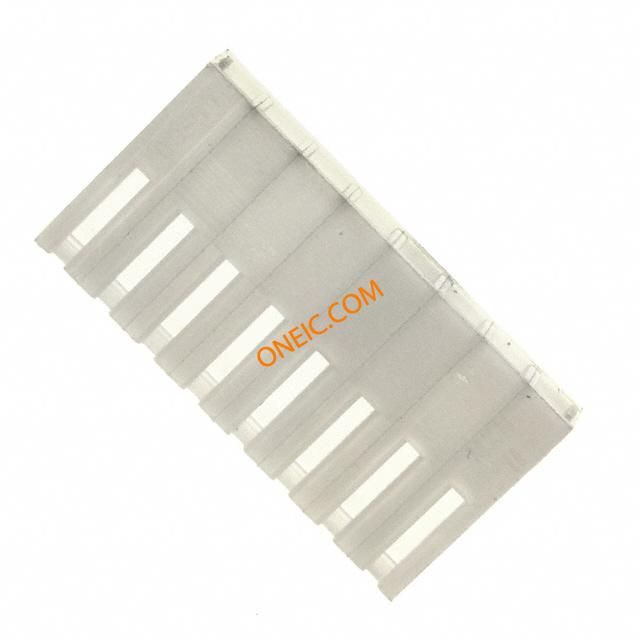

09-50-7081

制造商	Molex, LLC
描述	CONN HOUSING 8POS .156 W/O RAMP Headers & Wire Housings .156 KK HOUSING Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, 8POS, 3.96MM .156 TERMINAL HOUSING; W/O LCK RAMP; 8 CIRCUITS
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507081 2139-8C 9507081
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

海关税号

85399010

机械参数

颜色	Natural	间距	0.156" (3.96mm)
重量	0.00204	包装方式	Bulk
触头类型	Non Gendered	基体材料	:PA Polyamide (Nylon)
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
安装样式	Wire	排数	1
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	8
接触件端接	Crimp	位数	8

产品信息

备注	Contacts Not Provided	系列	2139
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	:2478 Crimp Terminals for 18-24 AWG, 2578 Crimp Terminals for 22-26 AWG

文档与媒体

PDF 文档

09-50-7081

PDF 文档

1781415.pdf

PDF 文档

0009507081_CRIMP_HOUSINGS.pdf
