点击放大查看

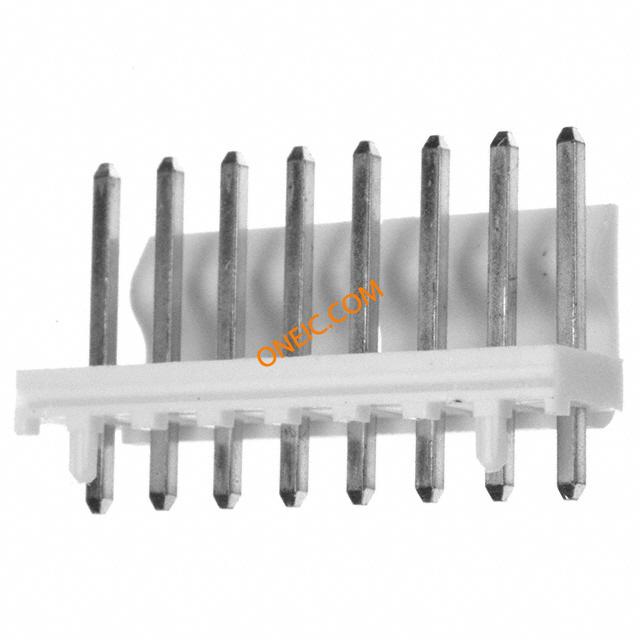

26-64-4080
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 8 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 8POS .156 VERT TIN Headers & Wire Housings HDR VERT W/PEGS 8P |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026644080 42491-0008 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 42491 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号
0009624087
molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS GOLD
0009503081
molex
Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .156 W/RAMP
0009508083
molex
Conn Housing RCP 8 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .156 W/POLAR
0009482081
molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS TIN PCB
0009521083
Molex, LLC
Buy now, ships today. 0009521083 - 8 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. View datasheets, pricing and availability from DigiKey now!
0009485085
molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 8POS GOLD PCB
0009485080
molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 8POS GOLD PCB
0009523085
molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS TIN PCB
0009482088
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 8POS TIN PCB
0009485086
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 8POS GOLD PCB
0009521086
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS TIN PCB
0009930800
Molex
Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 8POS
0009533081
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT HOUSING R/A 8POS TIN
0009482080
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS TIN PCB
0009482085
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 8POS TIN PCB
0009482082
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 8POS TIN PCB
0009485084
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS GOLD PCB
0009521080
Molex
Conn Socket Strip RCP 8 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 8POS TIN PCB
09-50-8081
Molex Connector Corporation
CONN HOUSING 8POS .156 W/RAMP Headers & Wire Housings HSG 8P W/LKG RAMP UL94V-0 Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, CRIMP, 3.96MM, 8WAY Molex KK 396 系列 3.96mm 节距 8 路 直 母 电缆安装 压接连接器外壳

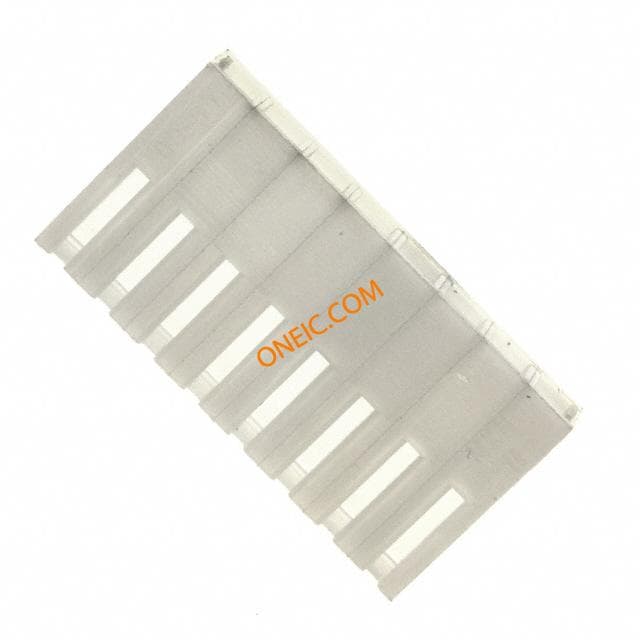

09-50-7081
