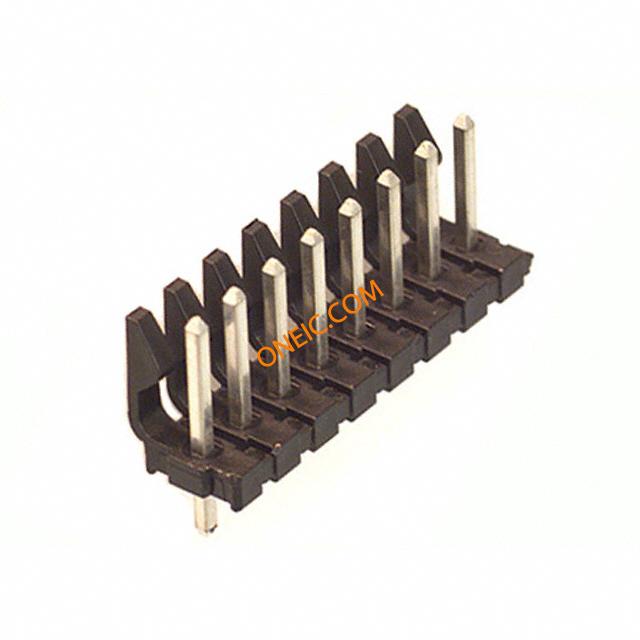

点击放大查看
0026481085
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 8 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 8POS .156 VERT TIN 08P HEADER 3,96 MM STRAIGHT |
| 分类 |
商业参数
| 交货时间 | 33 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 7/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 9.02 |
| 间距 | 0.156" (3.96mm) | 高度 | 14.68 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 排数 | 1 | 封装形式 | 87914 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 31.65 | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 26-48-1085, 26481085 | 加载位置数 | All |
