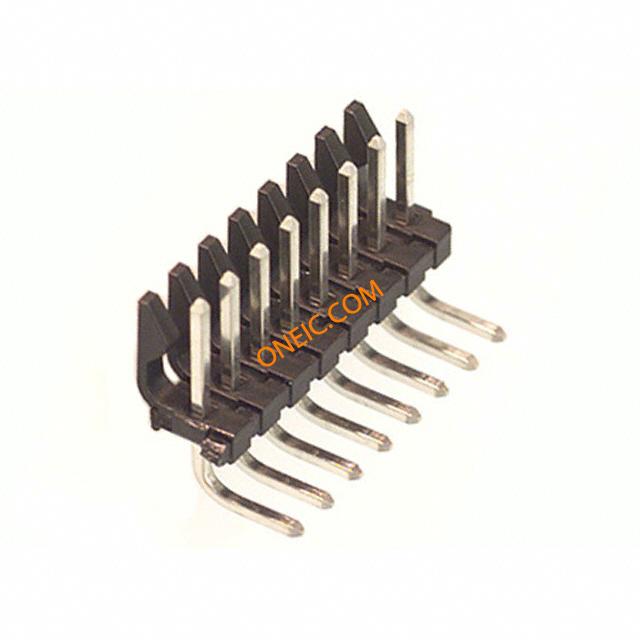

点击放大查看

0026481086

制造商	Molex, LLC
描述	CONN HEADER 8POS .156 R/A TIN
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	61 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

机械参数

颜色	Black	间距	0.156" (3.96mm)
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole, Right Angle
连接器类型	Header, Unshrouded, Breakaway	接触镀层	Tin
紧固类型	Friction Lock	排数	1
位数	8	接触长度 - 配合	0.450" (11.43mm)
接触镀层厚度	60µin (1.52µm)

产品信息

行业别名

26-48-1086, 26481086

加载位置数

All

文档与媒体

PDF 文档

Reflow Matte Tin Plating 27/Jul/2011

PDF 文档

Tin Whisker Formation Change 27/Jul/2011
