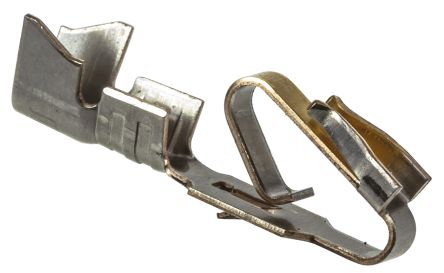

08-58-0111
| 制造商 | Molex, LLC |
| 描述 | Crimp terminal,KK 156,6838,Au,18-20awg Headers & Wire Housings TERMINAL BULK Contact SKT Crimp ST Cable Mount Loose Piece CONTACT, FEMALE, 20-18AWG, CRIMP Trifurcon Crimp Terminal 6438, 18-20 AWG Molex KK 396, Trifurcon 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008580111 6838-A(P561)L 8580111 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 6mΩ |
| 最大额定电流 | 7 A | ||
机械参数
| 重量 | 0 | 导线线规 | 20-18 |
| 端接方式 | Crimp | 接触镀层 | Gold over Nickel |
| 触头材料 | Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :20AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 6838 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :KK Series Crimp Terminal Housings |
环境参数
| 工作温度 | +75°C | ||
