点击放大查看

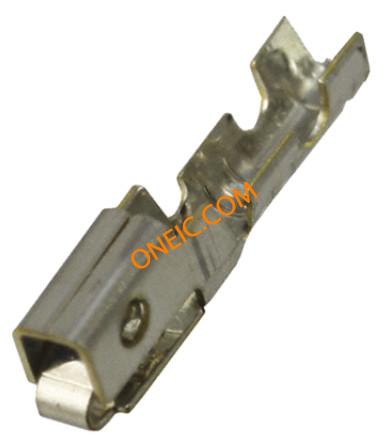

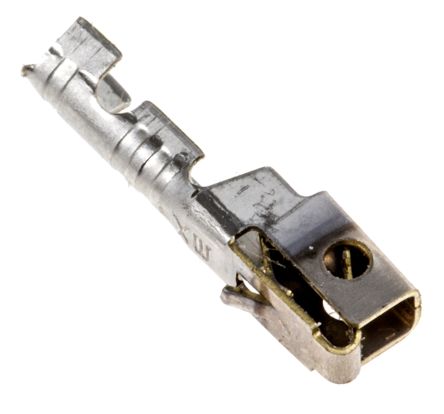

08-55-0124
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel Crimp term,22-30 AWG,select gold,reel Headers & Wire Housings SOCKET 22-30AWG REEL Reel of 5000 TERMINAL, 22-30, KK CRIMP, RECEPTACLE, 30-22AWG, REEL Molex KK HIGH PRESSURE 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008550124 7879-1(P208) 8550124 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 4 A | ||
机械参数
| 重量 | 0.002 | 包装方式 | Reel |
| 导线线规 | 30-22 | 端接方式 | Crimp |
| 触头类型 | Signal | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :30AWG |
产品信息
| 连接器性别 | SKT | 系列 | 7879 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :KK Series Crimp Terminal Housing Connectors |
