点击放大查看

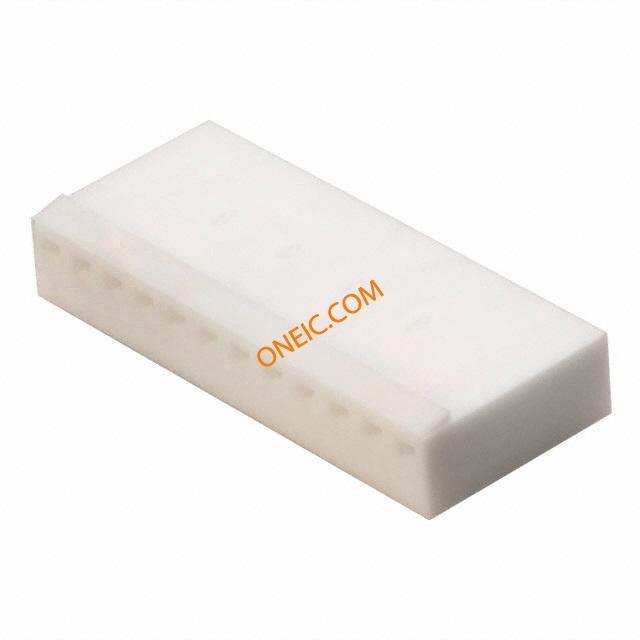

10-11-2123

制造商	Molex, LLC
描述	CONN HOUSING 12POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,12way Headers & Wire Housings 12P TERM HOUSING 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 12 Circuits WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM Molex KK 254 系列 1 行 2.54mm 节距 12 路直母压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0010112123 7880-12B
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS

Compliant

海关税号

85369010

机械参数

颜色	White	深度	12.9mm
间距	0.100" (2.54mm)	宽度	5.08mm
长度	31.04mm	重量	0.002
包装方式	Bulk	触头类型	Non Gendered
基体材料	:PA Polyamide (Nylon)	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	12
接触件端接	Crimp	位数	12

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	7880	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

10-01-2yyy, 10-11-2yyy

相关型号

0022232121

molex

Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

¥2.1930

详情

0022288123

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD

¥2.1787

详情

0022032121

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

¥3.3157

详情

0022284121

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

¥2.6187

详情

22-28-4125

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD Headers & Wire Housings 12CKT VERT HDR

¥1.8564

详情

0022052121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A TIN

¥4.4370

详情

0022122121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD

¥11.1078

详情

22-28-4122

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN Headers & Wire Housings KK 100 Hdr Assy Bkwy Assy Bkwy 12 Ckt Tin

¥1.5164

详情

22-28-4126

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD

¥2.8980

详情

暂无图片

22-28-8125

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 12 Ckt 30 SGold

¥2.6309

详情

0022288121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A TIN

¥2.2440

详情

0022102121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD

¥8.3749

详情

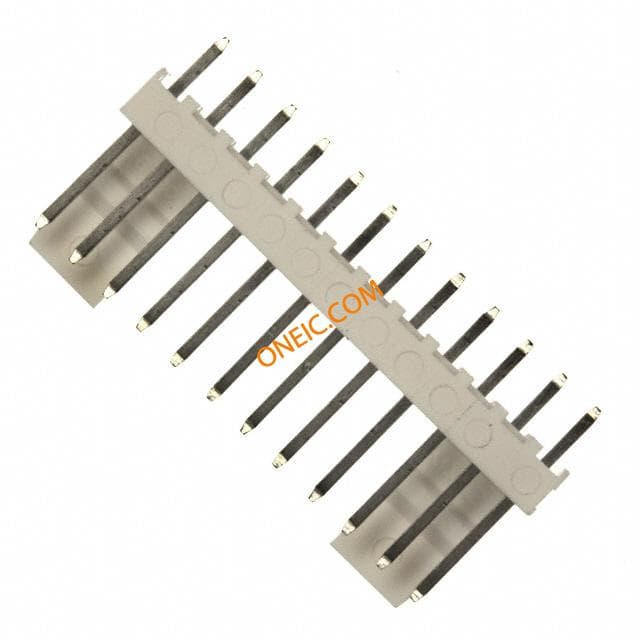

22-27-2121
