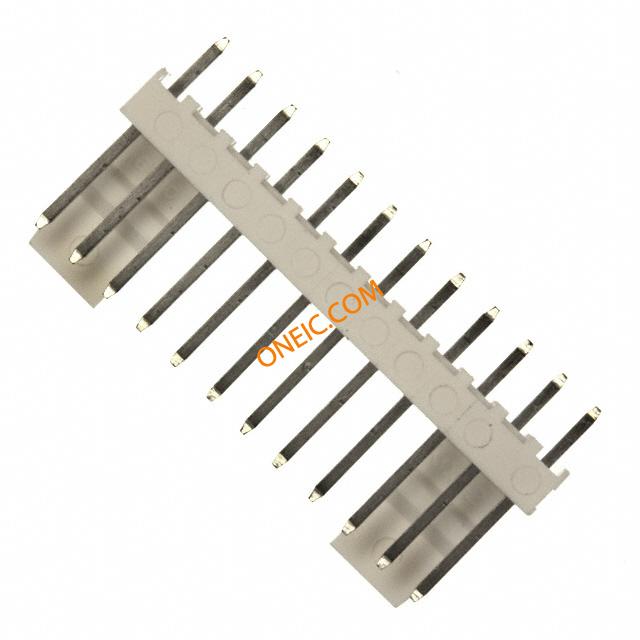

22-27-2121
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 12POS .100 VERT TIN Molex 6410 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 12 POSITION HEADER Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Bag HEADER, THT, VERTICAL, 2.54MM, 12WAY Molex KK 254 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022272121 AE-6410-12A(102) |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :MOLEX - KK 6410 Series | 额定电压 | 250 V |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 介电强度 | :1500V/m | 最大额定电流 | 4A |
机械参数
| 颜色 | Natural | 间距 | 0.100" (2.54mm) |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 释放力 | :0.57N | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 排数 | 1 | 插入力 | :2N |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 连接器颜色 | :White |
| 触点数 | 12 | 接触件端接 | :Through Hole Vertical |
| 位数 | 12 | 安装孔直径 | :1.02mm |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 6410 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :+75°C | ||
文档与媒体
