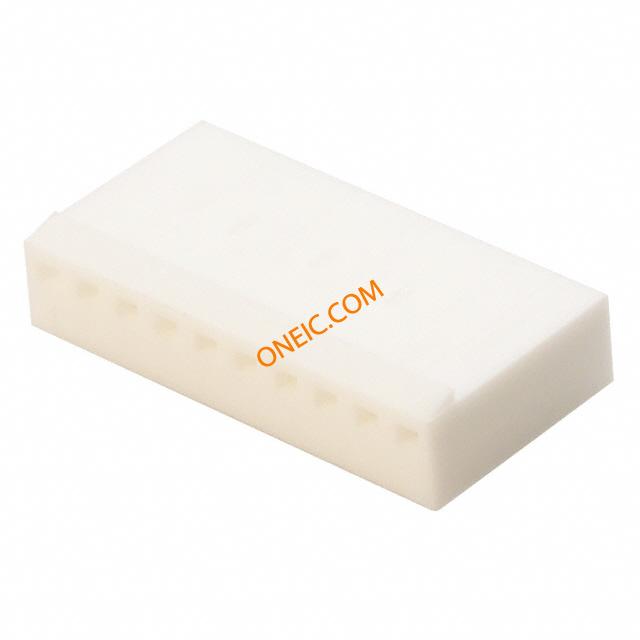

10-11-2103

制造商	Molex, LLC
描述	CONN HOUSING 10POS .100 HI PRESS 2.54mm,KK100,housing,f/ramp,nylon,10way Headers & Wire Housings 10P TERM HOUSING 2.54mm Pitch KK® Crimp Terminal Housing, High Pressure, 10 Circuits Conn Housing RCP 10 POS 2.54mm Crimp ST Bag WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM .100 KK Crimp Housing 10 Circuit Molex KK 254 系列 1 行 2.54mm 节距 10 路直母电缆安装压接连接器外壳
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

商业参数

商标名	KK	零件号别名	0010112103 7880-10B
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS

Compliant

海关税号

85366910

机械参数

颜色	White	深度	12.9mm
间距	0.100" (2.54mm)	宽度	5.08mm
长度	25.96mm	重量	0.002
包装方式	Bulk	触头类型	Non Gendered
基体材料	:PA Polyamide (Nylon)	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	10
接触件端接	Crimp	位数	10

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	7880	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

10-11-2103

相关型号

0022112102

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

¥4.7909

详情

0022232101

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN

¥1.8490

详情

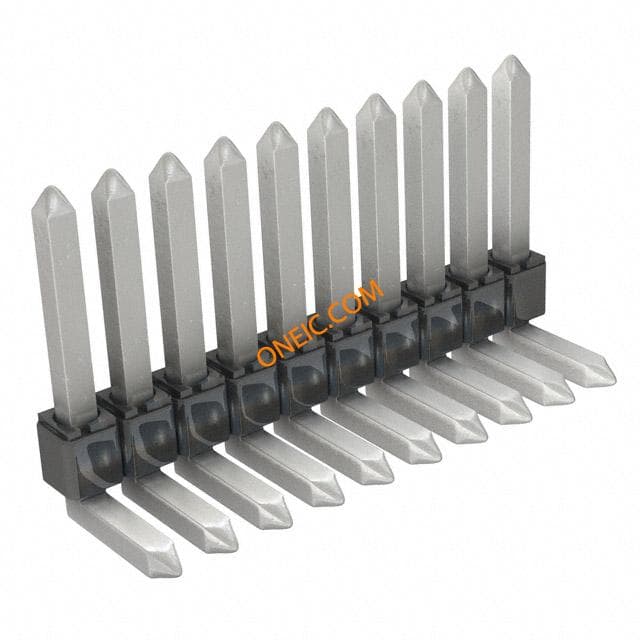

0022288101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

¥3.0197

详情

0022053101

molex

Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

¥3.4567

详情

0022052101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

¥3.8628

详情

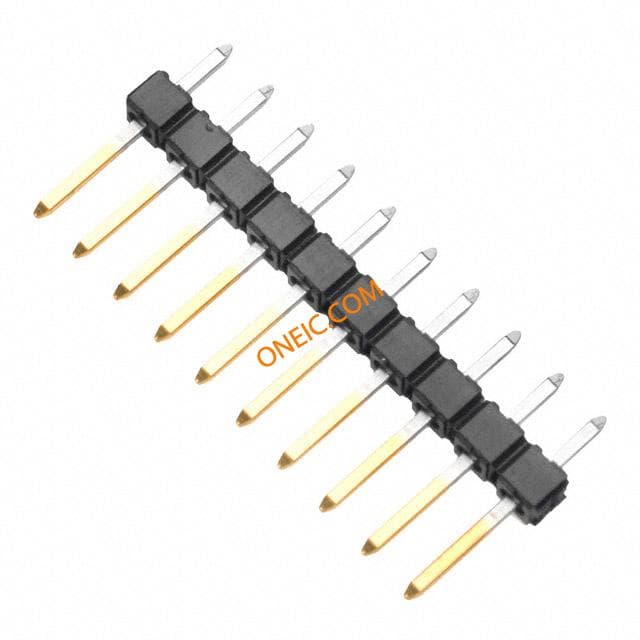

0022284103

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

¥3.2954

详情

暂无图片

22-28-8105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 10 Ckt 30 SGold

¥2.3069

详情

22-28-4106

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR VT 10P 240/125 30AU

¥2.4610

详情

0022292101

Molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

¥8.5332

详情

0022272101

Molex

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN

¥2.2169

详情

22-28-4105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings HDR VT 1X10P .1 295/120 15AU

¥1.5696

详情

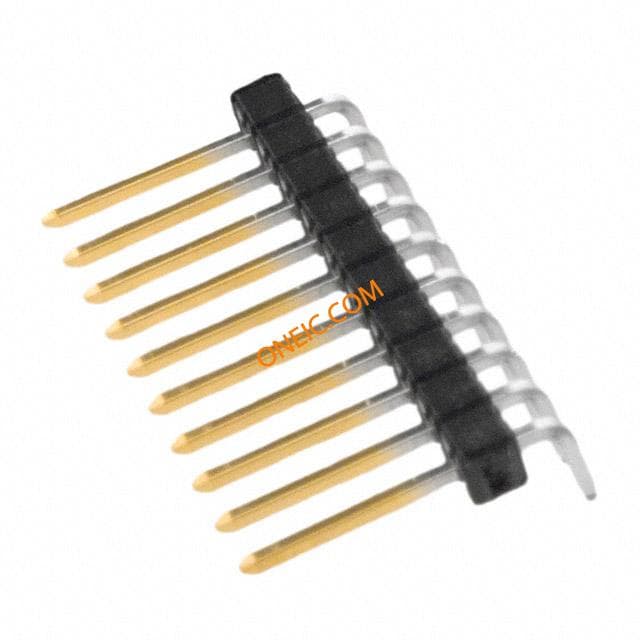

0022288103

Molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD

¥3.2580

详情

0022032101

Molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST

¥3.8628

详情

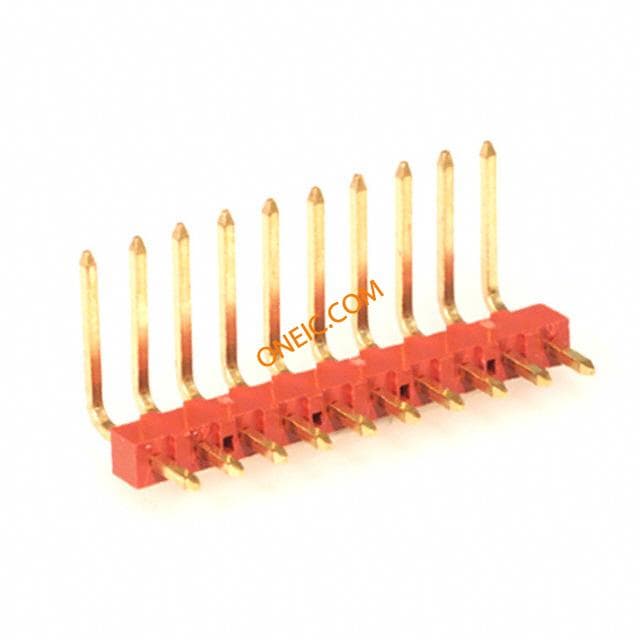

22-12-2101
