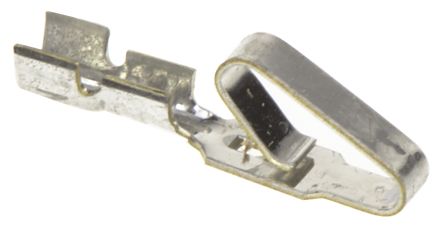

点击放大查看
08-50-0108
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,22-28awg Headers & Wire Housings TERMINAL 22-26 BULK CONTACT, CRIMP, PLUG, 28-22AWG, PK100 CRIMP PIN, 22-28AWG,PK1K CONTACT, CRIMP, PIN, 28-22AWG .156 SERIES CRIMP TERMINAL; TIN PLAT CONTCT; 22-26AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008500108 08-50-0108-Z 2578-(P909)L 8500108 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 4 A | ||
机械参数
| 重量 | 0.016 | 导线线规 | 26-22 |
| 端接方式 | Crimp | 触点尺寸 | :22 |
| 触头类型 | Signal | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Tin | 接触件端接 | :Crimp |
| 绝缘直径 | :1.65mm | 线规或范围 - AWG | :28AWG |
| 线规或范围 - mm² | :0.22mm² | 外径-未扩张 | :0.64mm |
产品信息
| 连接器性别 | SKT | 系列 | 2578 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :2574, 2139, 41695, 3069, 6422, 5265, 5239 Housing |
环境参数
| 工作温度 | +50°C | ||
