09-50-3041
| 制造商 | Molex, LLC |

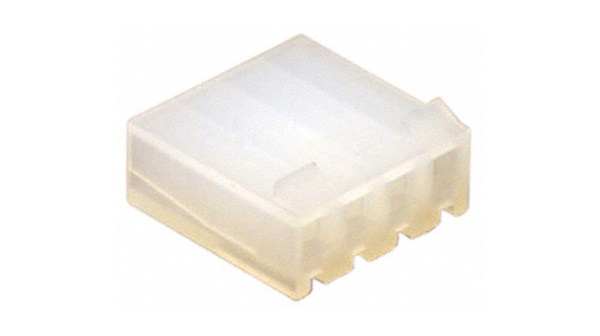

| 描述 | 3.96mm,KK,housing,w/ramp,nylon,4way Headers & Wire Housings HSG 4P W/LKG RAMP UL94V-2 Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 3.96MM, 4WAY Conn; Rect; InterConnSys; CableSCKT; 4Cont; Crimp; KKSeries; w/LCK Ramp; 0.156InPin-Spng Crimp housing 4P, 09-50-3041, Molex Molex KK 396 系列 3.96mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009503041 2139-4A 9503041 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
机械参数
| 深度 | 15.88mm | 间距 | 3.96mm |
| 宽度 | 6.4mm | 长度 | 15.75mm |
| 重量 | 0.005 | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 位数 | :4 | ||
产品信息
| 连接器性别 | Female | 系列 | 2139 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | KK Connector | ||
