点击放大查看

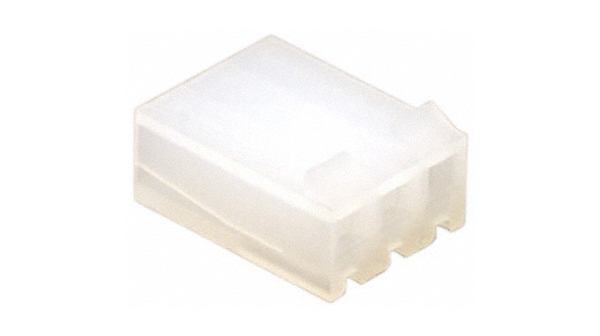

09-50-3031
| 制造商 | Molex, LLC |
| 描述 | 3.96mm,KK,housing,w/ramp,nylon,3way Headers & Wire Housings HSG 3P W/LKG RAMP UL94V-2 Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CRIMP HOUSING, 3.96MM, 3WAY Conn; Rect; InterConnSys; CableSCKT; 3Cont; Crimp; KKSeries; w/LCK Ramp; 0.156InPin-Spng Crimp housing 3P, 09-50-3031, Molex Molex KK 396 系列 3.96mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009503031 2139-3A 9503031 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 2139 Series | ||
机械参数
| 深度 | 15.88mm | 间距 | 3.96mm |
| 宽度 | 6.4mm | 长度 | 11.79mm |
| 重量 | 0.005 | 引脚间距 | :3.96mm |
| 安装类型 | Straight | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 接触件端接 | :Crimp |
产品信息
| 连接器性别 | Female | 系列 | 2139 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | KK Connector | ||
文档与媒体
相关型号
08-50-0106
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

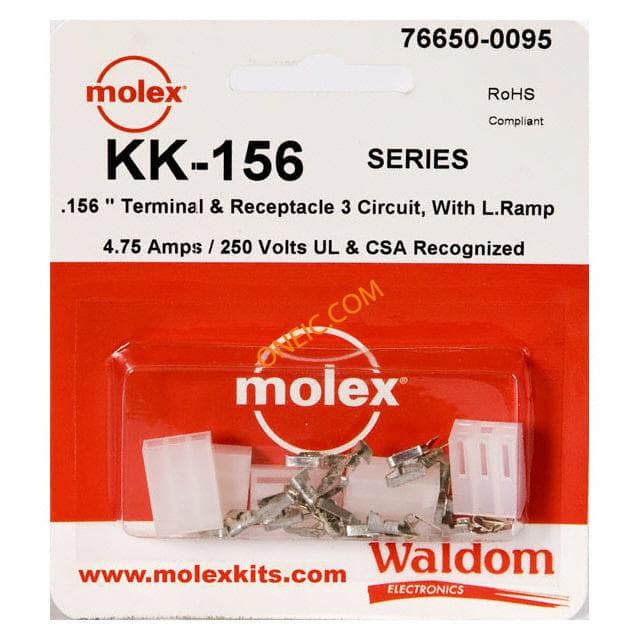

76650-0095
Molex Connector Corporation
KIT .156 KK SERIES 3 CIRC RAMP Headers & Wire Housings KK-156 Connector Kit Recep and term 3Ckt KK-156 Connector Kit Kit Description:.156 Pitch Receptacle and Terminals, 3 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:21 KK-156 CONNECTOR KIT .156 PITCH RECEPT & TERMINALS, 3 CKT
76650-0209
Molex Connector Corporation
KIT WMLX-262 Headers & Wire Housings KK-156 Connector Kit V & RA Hdr Rec 3Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle, 3 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:19 KK-156 CONNECTOR KIT .156 PITCH, 3 CKT

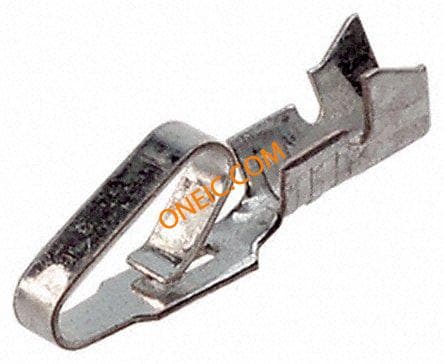

08-52-0072
Molex Connector Corporation
CONN TERM FEMALE 18-24AWG TIN Crimp terminal,KK 156,2478,tin,18-24 awg Headers & Wire Housings TERMINAL 18-24 BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 24-18 AWG, CRIMP 3.96mm Pitch KK, Crimp Terminal; 18-20 AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

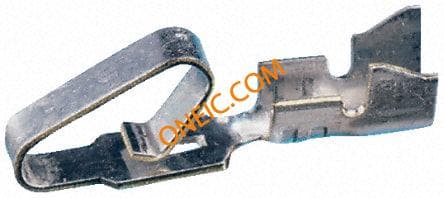

08-55-0106
Molex
Crimp,3.96mm,22-26 AWG,select gold,bag Headers & Wire Housings SOCKET 22-26AWG BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 26-22 AWG, CRIMP Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点
08-56-0108
Molex
Crimp terminal,KK 156,2578,gold,22-26awg Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, STD, 22-28 TERM FEMALE 22-26AWG GOLD Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点
