点击放大查看

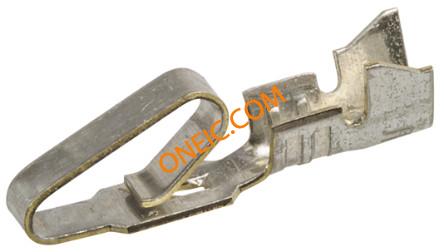

08-50-0106
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008500106 2478-1-(P909)L 8500106 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 5 A | ||
机械参数
| 重量 | 0.176 | 导线线规 | 24-18 |
| 端接方式 | Crimp | 触点尺寸 | :18 |
| 接触镀层 | Tin | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Tin | 接触件端接 | :Crimp |
| 绝缘直径 | :2.79mm | 线规或范围 - AWG | :24AWG |
| 线规或范围 - mm² | :0.933mm² | 外径-未扩张 | :1.02mm |
产品信息
| 连接器性别 | Female | 系列 | 2478 |
| 产品子类型 | Contacts | 适用产品/相关产品 | Crimp Terminal Housing, Friction Ramp, Edge Card Connector |
环境参数
| 工作温度 | +50°C | ||
文档与媒体
相关型号
63811-7500
molex
Connector Accessories Hand Crimp Tool Crimpers HAND CRIMP TOOL 18 - 24 AWG KK 18-24awg crimp tool,0.156in pitch Hardware Tools Hand Crimp Tool HAND TOOL, CRIMP, 24-18AWG Hand Crimp Tool Crimping plier, 63811-7500, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于18 → 24 AWG 线规格

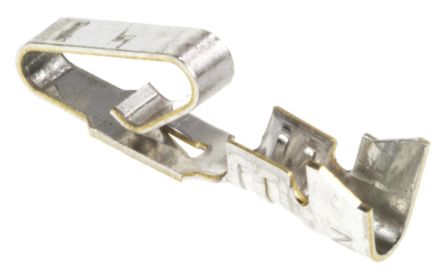

08-50-0106
