点击放大查看

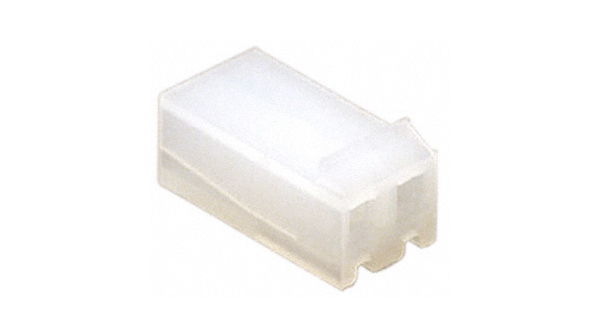

09-50-3021
| 制造商 | Molex, LLC |
| 描述 | 3.96mm,KK,housing,w/ramp,nylon,2way Headers & Wire Housings HSG 2P W/LKG RAMP UL94V-2 Conn Housing F 2 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 2WAY .156 TERMINAL HOUSING; W/LCK RAMP; 2 CIRCUITS Crimp housing 2P, 09-50-3021, Molex Molex KK 396 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009503021 2139-2A 9503021 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :MOLEX - KK 2139 Series | ||
机械参数
| 深度 | 15.88mm | 间距 | 3.96mm |
| 宽度 | 6.4mm | 长度 | 7.82mm |
| 重量 | 0.001 | 安装类型 | Straight |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 接触件端接 | :- | ||
产品信息
| 连接器性别 | Female | 系列 | 2139 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | KK Connector | ||
文档与媒体
相关型号
08-50-0108
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,22-28awg Headers & Wire Housings TERMINAL 22-26 BULK CONTACT, CRIMP, PLUG, 28-22AWG, PK100 CRIMP PIN, 22-28AWG,PK1K CONTACT, CRIMP, PIN, 28-22AWG .156 SERIES CRIMP TERMINAL; TIN PLAT CONTCT; 22-26AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点
08-50-0106
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

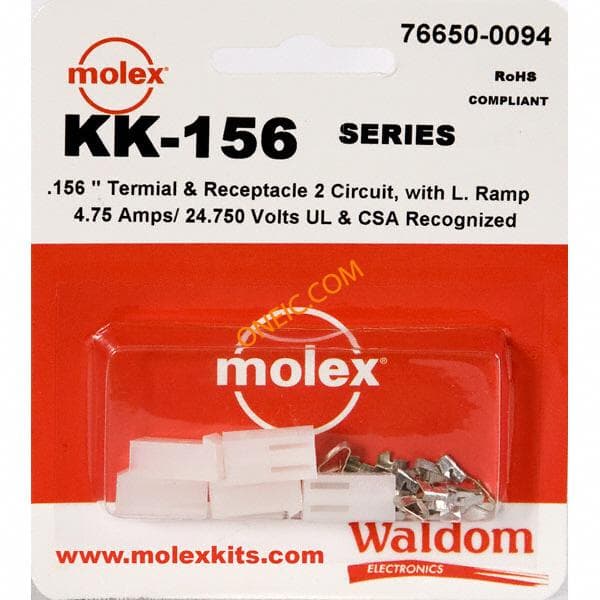

76650-0094
Molex Connector Corporation
KIT .156 KK SERIES 2 CIRC RAMP Headers & Wire Housings KK-156 Connector Kit Recep and term 2Ckt KK-156 Connector Kit Kit Description:.156 Pitch Receptacle and Terminals, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-156 CONNECTOR KIT .156 PITCH RECEPT & TERMINALS, 2 CKT

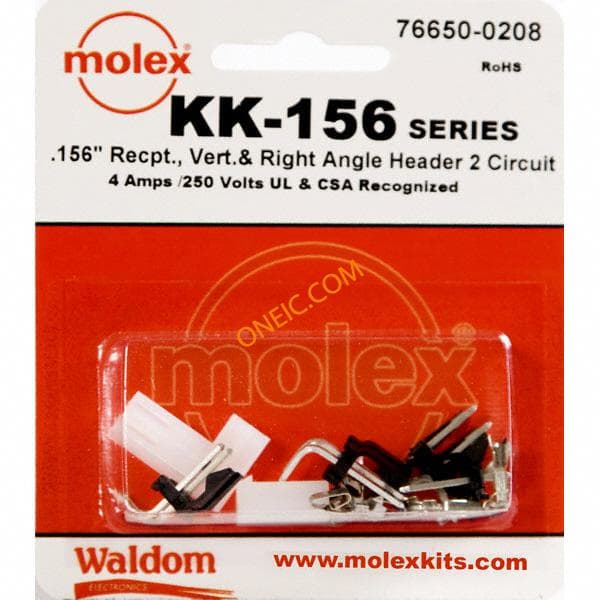

76650-0208
Molex Connector Corporation
KIT WMLX-261 Headers & Wire Housings KK-156 Connector Kit V & RA Hdr Rec 2Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-156 CONNECTOR KIT .156 PITCH, 2 CKT
08-52-0072
Molex Connector Corporation
CONN TERM FEMALE 18-24AWG TIN Crimp terminal,KK 156,2478,tin,18-24 awg Headers & Wire Housings TERMINAL 18-24 BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 24-18 AWG, CRIMP 3.96mm Pitch KK, Crimp Terminal; 18-20 AWG Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点

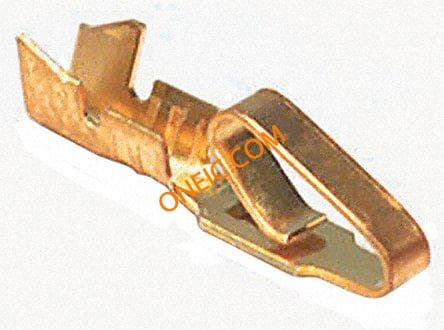

08-56-0106
Molex Connector Corporation
CONN TERM FEMALE 18-24AWG GOLD Crimp terminal,KK 156,2478,gold,18-24awg Headers & Wire Housings TERMINAL, 18-24AWG BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 24-18 AWG, CRIMP .156 SERIES CRIMP TERMINAL; GOLD IN CONTACT AREA; 18-24AWG Molex KK 系列 母 压接接线端子, 压接, 镀金触点
08-55-0106
Molex
Crimp,3.96mm,22-26 AWG,select gold,bag Headers & Wire Housings SOCKET 22-26AWG BULK Contact SKT Crimp ST Cable Mount Bag CONTACT, SOCKET, 26-22 AWG, CRIMP Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点

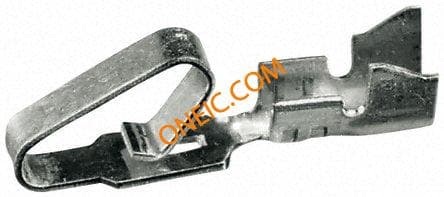

08-56-0108
Molex
Crimp terminal,KK 156,2578,gold,22-26awg Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, STD, 22-28 TERM FEMALE 22-26AWG GOLD Molex KK 396 系列 母 压接接线端子, 压接, 镀金镀镍触点
