点击放大查看

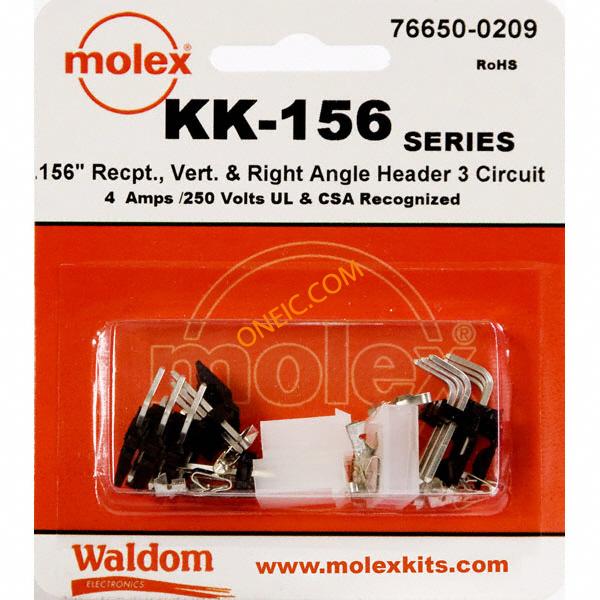

76650-0209
| 制造商 | Molex, LLC |
| 描述 | KIT WMLX-262 Headers & Wire Housings KK-156 Connector Kit V & RA Hdr Rec 3Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle, 3 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:19 KK-156 CONNECTOR KIT .156 PITCH, 3 CKT |
| 分类 |
商业参数
| 商标名 | KK | 标准包装规格 | 1 |
| 零件号别名 | 0766500209 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 4 A | ||
机械参数
| 间距 | 3.96 mm | 包装方式 | Plastic Packaging |
| 导线线规 | 24-18 | 方向 | Vertical and Right Angle |
| 安装类型 | Right, Straight | 连接器类型 | Receptacle and Header |
| 端接样式 | SMD, Through Hole | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 3 | ||
产品信息
| 系列 | 76650 | 值 | 19 pcs - Assorted 3 Circuit Header, Housing, 24 ~ 18 AWG Crimp Terminals |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
| 电路数 | 3 | 应用细节 | Vending and Gaming Machines, Production Equipment, Industrial Instruments, Energy and Power |
