点击放大查看

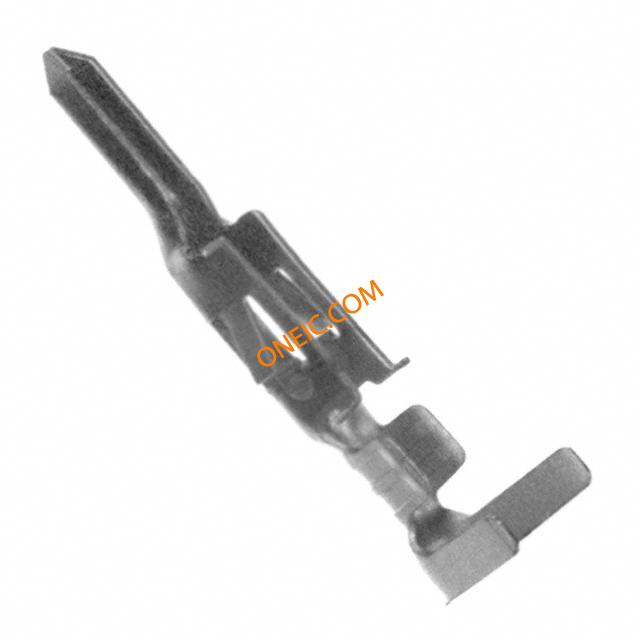

0039000431
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-24AWG GOLD |
| 分类 |
商业参数
| 标准包装数量 | 8,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 9 | ||
机械参数
| 深度 | 3.6 | 间距 | Not Required mm |
| 高度 | 4.5 | 包装方式 | Bag |
| 导线线规 | 18-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Brass |
| 总长度 | 16.8 | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | PIN |
