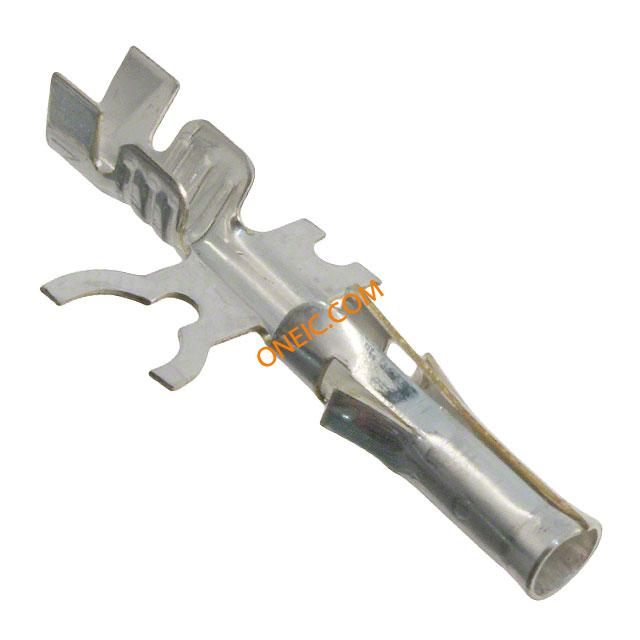

0039000285
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel TERM FEMALE 18-24AWG CRIMP TIN |
| 分类 |
商业参数
| 其他名称 | WM2830CT | 标准包装数量 | 8,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 17 |
机械参数
| 深度 | 3.3 | 高度 | 3.6 |
| 包装方式 | Reel | 导线线规 | 18-24 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Pre-Tin Over Copper | 触头材料 | Brass |
| 总长度 | 22 | 接触件端接 | Crimp |
| 接触镀层厚度 | 35µin (0.90µm) | ||
产品信息
| 连接器性别 | SKT | ||
环境参数
| 工作温度 | 105 | ||
