点击放大查看

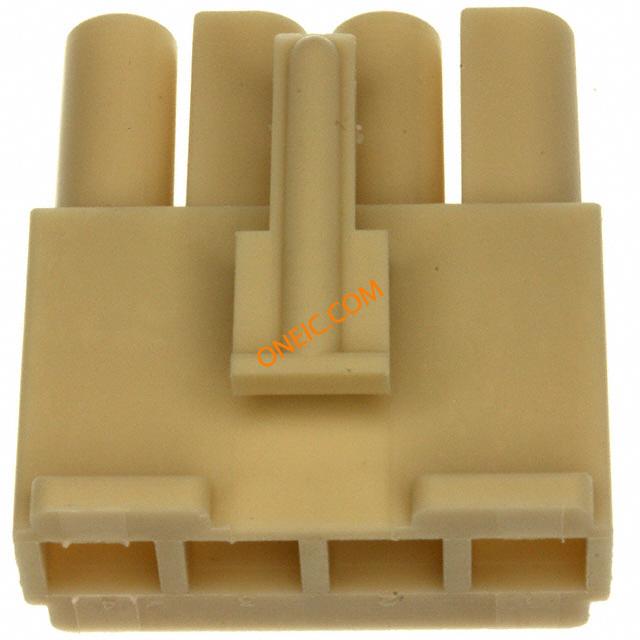

19-09-1046
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 4POS .093 Pin & Socket Connectors RECPT 4P WITH LTCH Conn Housing RCP 4 POS 6.7mm Crimp ST Bag PLUG AND SOCKET CONNECTOR HOUSING |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0019091046 3191-4R1-201 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大额定电流 | 9 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.264" (6.71mm) |
| 重量 | 0.004 | 包装方式 | Bulk |
| 触头类型 | Male or Female | 基体材料 | :PA Polyamide (Nylon) 6/6 |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 线缆终端 | :Crimp | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 3191 |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 2605 Crimp Terminals |
