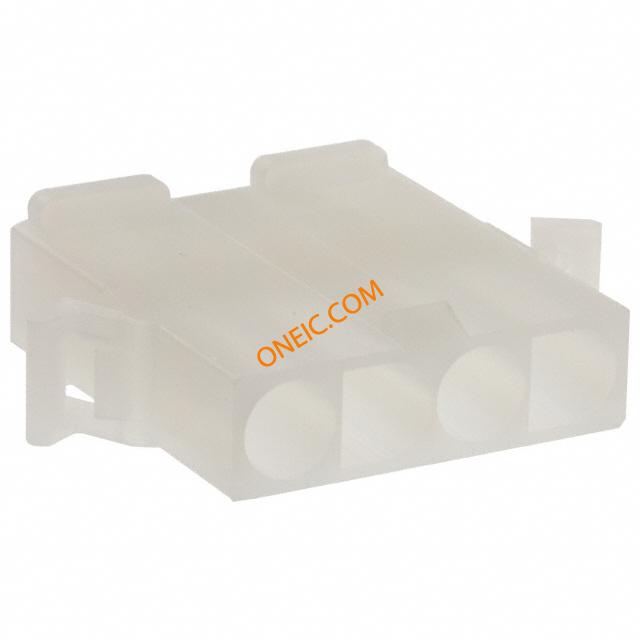

19-09-2048

制造商	Molex, LLC
描述	CONN PLUG 4POS .093 PANEL MOUNT Pin & Socket Connectors PLUG 94V-2 Conn Housing PL 4 POS 6.7mm Crimp ST Panel Mount Bag .093 POWR CONNECTR; INTRNL SERIES; PANEL MNT PLUG; 4 CIRCUT
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	Standard .093 in	零件号别名	0019092048 3191-4P
产品类别	Pin & Socket Connectors	标准包装数量	10
工厂包装数量	10000

合规参数

RoHS	RoHS Compliant	认证机构标志	CSA, UL, TUV
材料阻燃等级	UL94V-2

电气参数

额定电压	600 V	最大额定电流	9 A
连接器类型 - 电压输入	Crimp

机械参数

颜色	Natural	间距	0.264" (6.71mm)
包装方式	Bulk	端接方式	Crimp
触点形式	Male or Female	触头类型	Male or Female
安装类型	Panel Mount, Snap-In	行程角度	Straight
连接器类型	Plug	紧固类型	Locking Ramp
安装样式	Panel	排数	1
壳体材料	Nylon	总长度	1.091 "
主要材料	Power	端接样式	Crimp
第一触头极性	Pin (Male), Socket (Female)	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	类型	Cable Plug
系列	3191	制造商全称	3191 Series
产品子类型	Plug Housings	输出配置	Panel Mount, Snap-In

环境参数

工作温度

-40 to +105 °C

文档与媒体

PDF 文档

.093 Housings, Plug, Receptacles

PDF 文档

0019092048_CRIMP_HOUSINGS.pdf
