点击放大查看

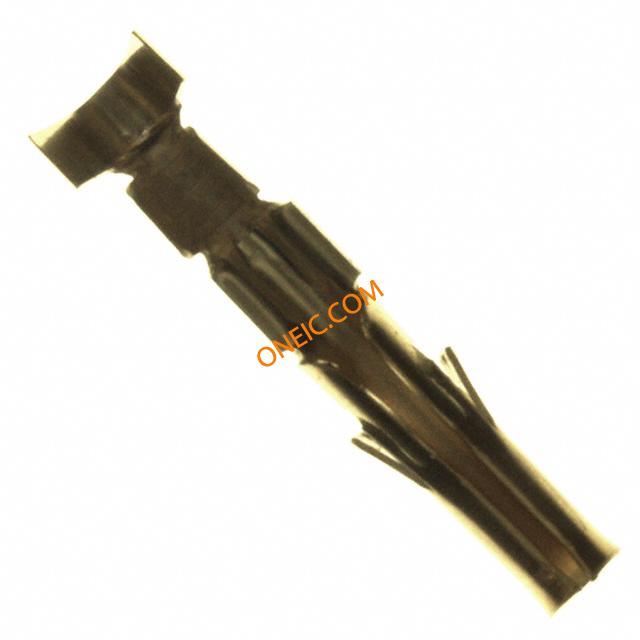

02-09-5106
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 14-20AWG GOLD Crimp term 2.36mm,,fem,14-20 AWG,Au, bag Pin & Socket Connectors SOCKET 14-20AWG BULK Contact SKT Crimp ST Cable Mount Bag 093 Female Brass Term Lse 15Au 14-20 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0002095106 1189-A(P550)L 2095106 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 接触电阻 | 10mΩ | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 插针或插孔 | Socket |
| 连接器类型 | 母座 | 接触镀层 | Gold |
| 触头材料 | Brass Alloy | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
| 线规或范围 - AWG | 20 | ||
产品信息
| 类型 | Power | 连接器性别 | Female |
| 系列 | 1189 | 产品子类型 | Contacts |
| 基础产品编号 | 1189 | ||
环境参数
| 工作温度 | +105°C | ||
