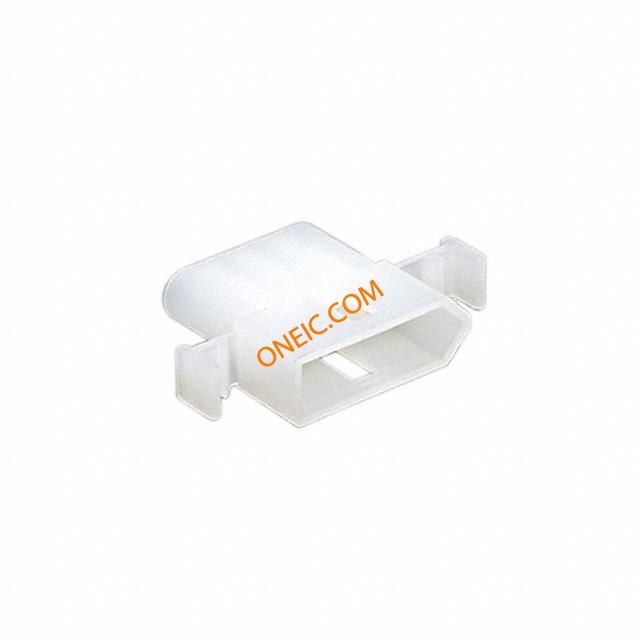

03-09-2041
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 4POS .093 PANEL MOUNT Molex 5.03mm 4 Way 1 Row Straight Male Housing Receptacle Pin & Socket Connectors 4 CIRCUIT PLUG Conn Housing PL 4 POS 5.03mm ST Bag 2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 4 Circuits, Single Row TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 4 CIRCUITS Molex STANDARD .093"" 系列 5.03mm 节距 4 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0003092041 1490-P 3092041 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 认证机构标志 | CSA, UL |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 11A |
机械参数
| 颜色 | Natural | 深度 | 25.4mm |
| 间距 | 0.198" (5.03mm) | 高度 | 8.6mm |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Plug | 紧固类型 | Detent Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体材料 | Nylon | 总长度 | 1 " |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |

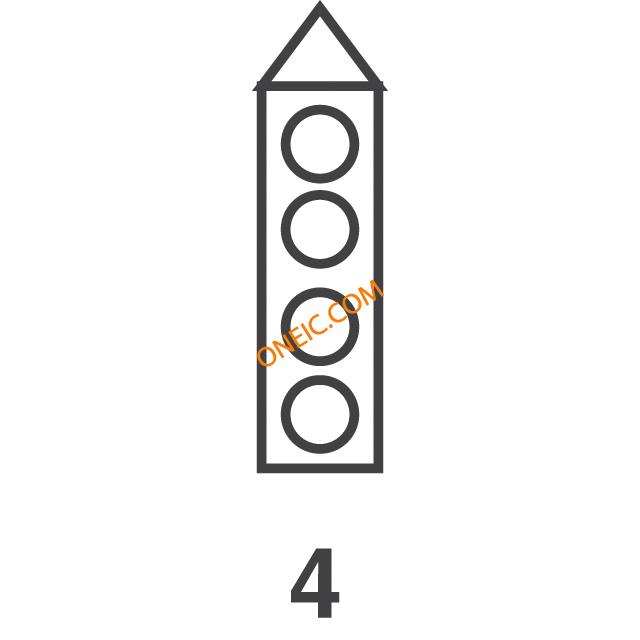

| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 安装孔直径 | 1.131×0.375 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Plug |
| 连接器性别 | Male | 系列 | 1490 |
| 制造商全称 | 1490 Series | 产品子类型 | Plug Housings |
| 基础产品编号 | 1490 | ||
环境参数
| 工作温度 | -40 to +105 °C | ||
