点击放大查看

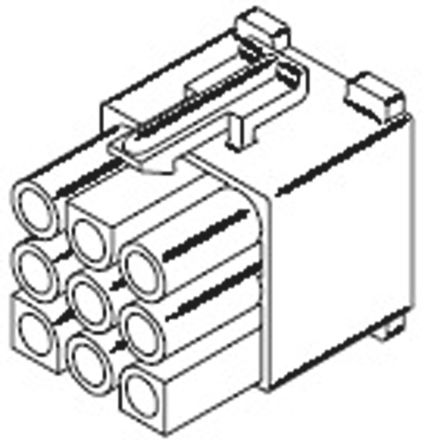

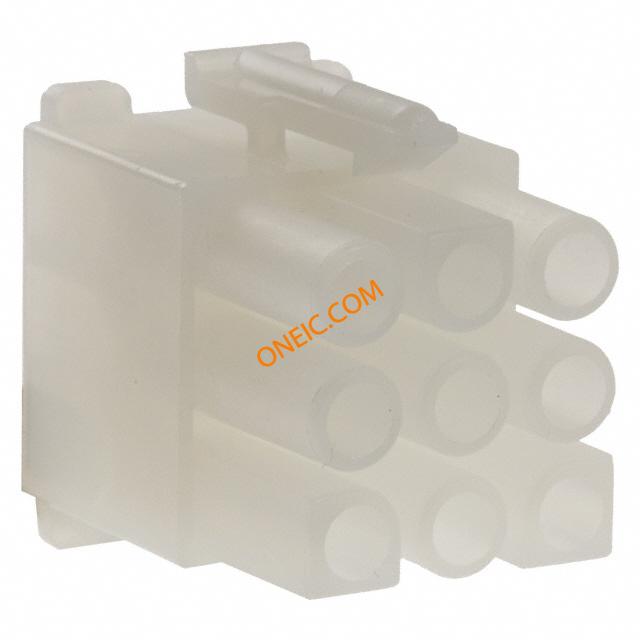

19-09-1099
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 9POS .093 Pin & Socket Connectors 9C POWER ASG W/LOCK Conn Housing RCP 9 POS 6.7mm Crimp ST Cable Mount Bag .093 POWER CONNECTOR; INTRNTL SERIES; RECEPTACLE; 9 CIRCUTS Molex STANDARD .093" 系列 3 行 6.7mm 节距 9 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0019091099 3191-9R1 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 2200 | ||
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 26.2mm |
| 间距 | 0.264" (6.71mm) | 宽度 | 29.9mm |
| 长度 | 21mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.264" (6.71mm) |
| 端接方式 | Crimp | 触点形式 | Male or Female |
| 触头类型 | Male or Female | 引脚间距 | 0.264" (6.71mm) |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 3 | 壳体材料 | Nylon |
| 总长度 | 0.83 " | 主要材料 | Power |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Socket |
| 系列 | 3191 | 制造商全称 | 3191 Series |
| 产品子类型 | Receptacle Housings | 基础产品编号 | 3191 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | 1973、2151、2273、2605、2606、2870、2871、4272、1189 压接端子、1190 压接端子、1380 插入式压接端子、1381 包容式压接端子、1433 压接端子、1434 插入式压接端子 |
环境参数
| 工作温度 | -40 to +105 °C | ||
