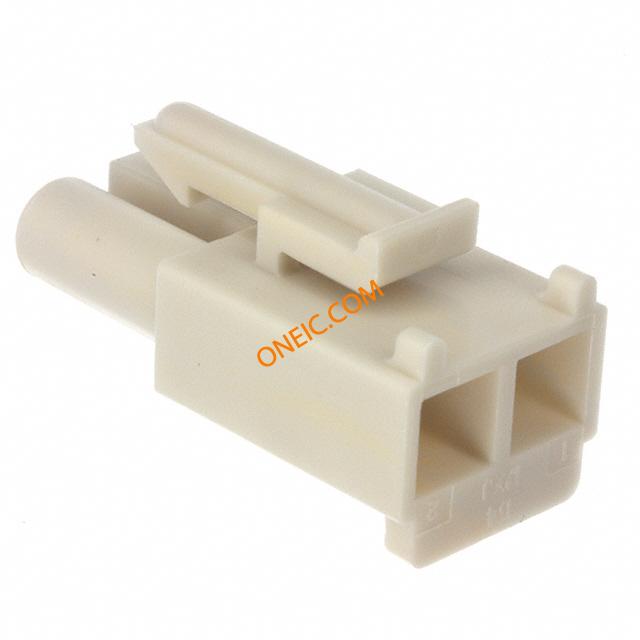

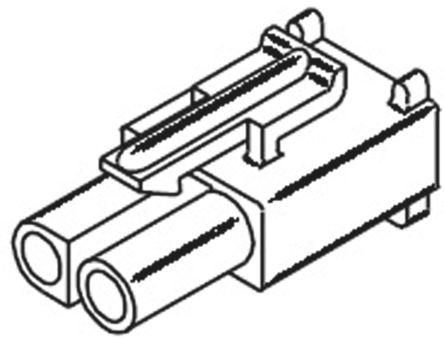

19-09-1026
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE 2POS .093 Pin & Socket Connectors 2 POS RECEPTACLE Conn Housing RCP 2 POS 6.7mm Crimp ST Bag PLUG AND SOCKET CONNECTOR HOUSING .093 Pin and Socket Recpt; 2 Circuit 94V-0 Molex STANDARD .093" 系列 6.7mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .093 in | 零件号别名 | 0019091026 3191-2R1-201 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL, TUV | 材料阻燃等级 | UL94V-0 |
电气参数
| 最大额定电流 | 12 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.264" (6.71mm) |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 触头类型 | Male or Female | 基体材料 | :PA Polyamide (Nylon) 6/6 |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 线缆终端 | :Crimp |
| 壳体材料 | Nylon | 总长度 | 1.19 " |
| 主要材料 | Power | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Cable Plug/Cable Socket |
| 系列 | 1991 | 制造商全称 | 3191 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1189, 1190, 1434, 1973 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
