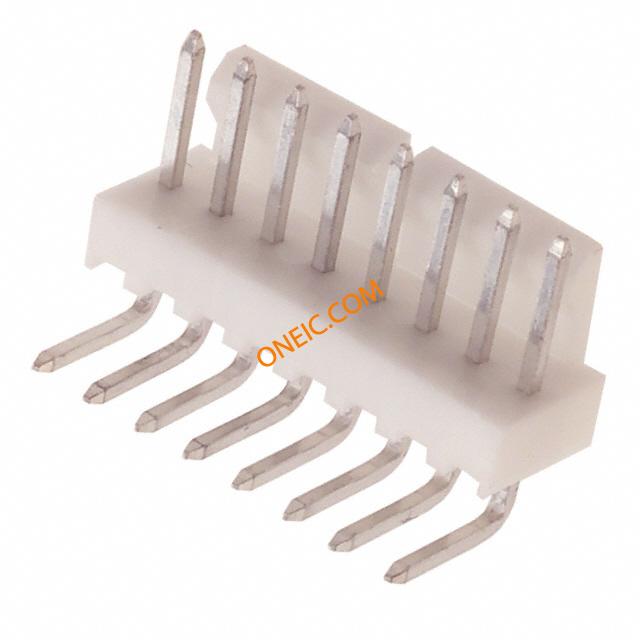

0022053081
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A TIN |
| 分类 |
商业参数
| 交货时间 | 51 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 4/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 12.83 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.35 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 20.32 mm | 触点数 | 8 |
| 位数 | 8 | 接触长度 - 配合 | 0.264" (6.70mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 22-05-3081, 22053081 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
相关型号
0022152086
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 8POS .100 R/A PCB
0022142084
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
0022012085
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 8POS .100 W/RAMP/RIB
0022013087
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 8POS .100 W/RAMP/RIB
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0022182081
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
22-01-2081
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,8w Headers & Wire Housings 8 CKT TERM HOUSING CONNECTOR, HOUSING, RECEPTACLE, 8POS, 2.54MM .100 TERMINAL HOUSING; W/O LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳

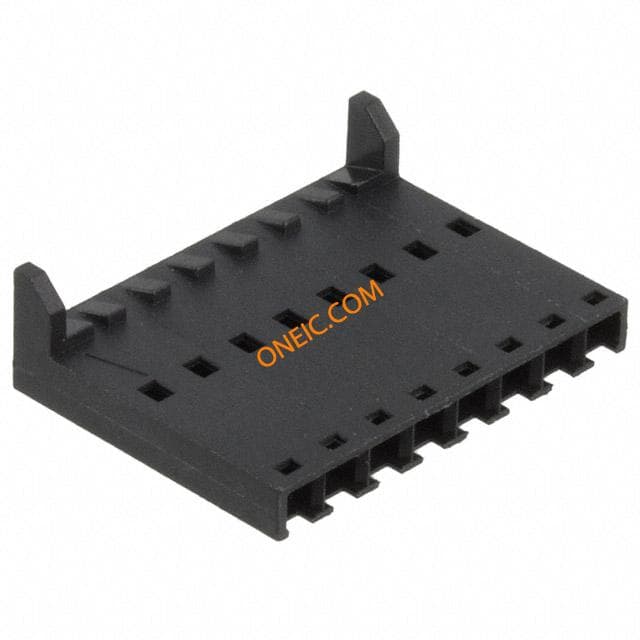

0050579508
