点击放大查看

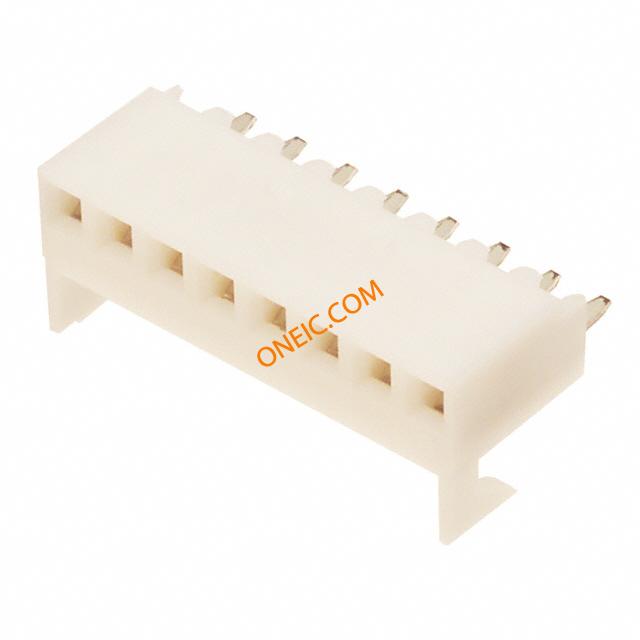

0022182081

制造商	Molex, LLC
描述	Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

电气参数

额定电压	250V	接触电阻	20
最大额定电流	2.5/Contact

机械参数

颜色	White	深度	7.7
间距	0.100" (2.54mm)	高度	7.9
长度	20.22	端部样式	Solder
包装方式	Tray	方向	Straight
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	1
触头材料	Brass	连接器颜色	White
触点数	8	位数	8
绝缘材料 - 材质	Nylon	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Socket Strip	连接器性别	RCP
其他规格	1	装配配置	Through Hole
加载位置数	All
