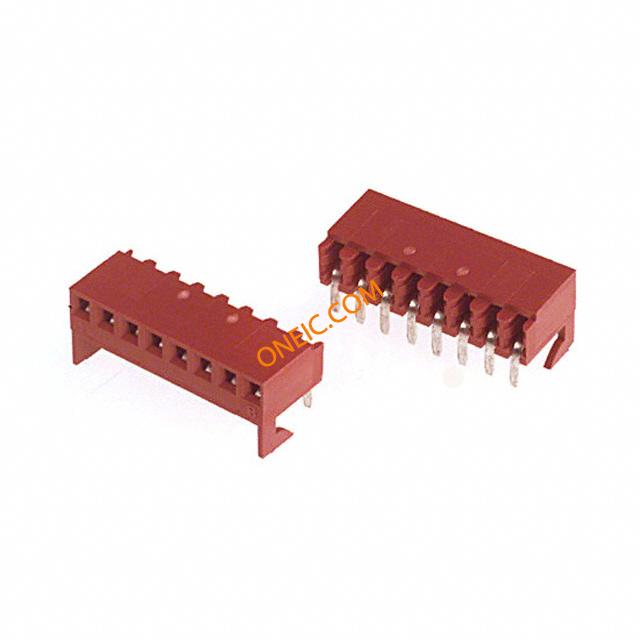

点击放大查看

0022152086

制造商	Molex, LLC
描述	Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 8POS .100 R/A PCB
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	36 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20	最大额定电流	2.5/Contact
最小输入电压	250V

机械参数

颜色	White	深度	7.9
间距	2.54 mm	高度	4.7
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Tin	排数	1
触头材料	Brass	壳体材料	Nylon
总长度	20.22	触点数	8
位数	8	接触镀层厚度	100µin (2.54µm)

产品信息

类型	Socket Strip	连接器性别	RCP
行业别名	22-15-2086, 22152086	加载位置数	All

文档与媒体

PDF 文档

Resin Color 01/Jan/2002

PDF 文档

0022152086_PCB_RECEPTACLES.pdf

PDF 文档

22-15-2086
