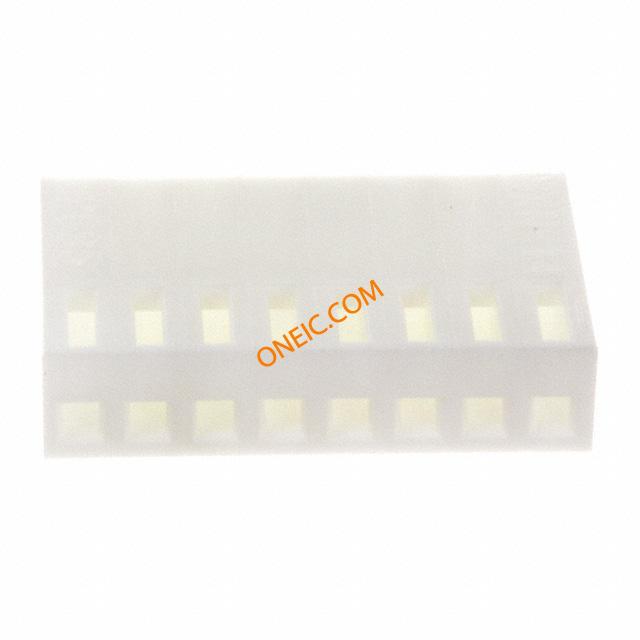

22-01-2081

制造商	Molex, LLC
描述	Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,8w Headers & Wire Housings 8 CKT TERM HOUSING CONNECTOR, HOUSING, RECEPTACLE, 8POS, 2.54MM .100 TERMINAL HOUSING; W/O LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012081 2695-08
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	2500

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	250 V	开关功能	Unlatched
最大额定电流	3 A	连接器类型 - 电压输入	Female

机械参数

颜色	White	深度	12.7mm
间距	0.100" (2.54mm)	宽度	4.82mm
长度	20.88mm	重量	0.002
包装方式	Bulk	触头类型	Non Gendered
基体材料	:PA Polyamide (Nylon)	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	排数	1
壳体材料	Nylon	触点数	8
接触件端接	Crimp	位数	8

产品信息

备注	Contacts Not Provided	类型	Crimp Housing
连接器性别	Female	系列	2695
CAD图纸	3D CAD Model	产品子类型	Wire Housings
应用细节	Signal, Wire-to-Board	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

22-01-2081

相关型号

0022032081

molex

Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT TIN

¥2.2528

详情

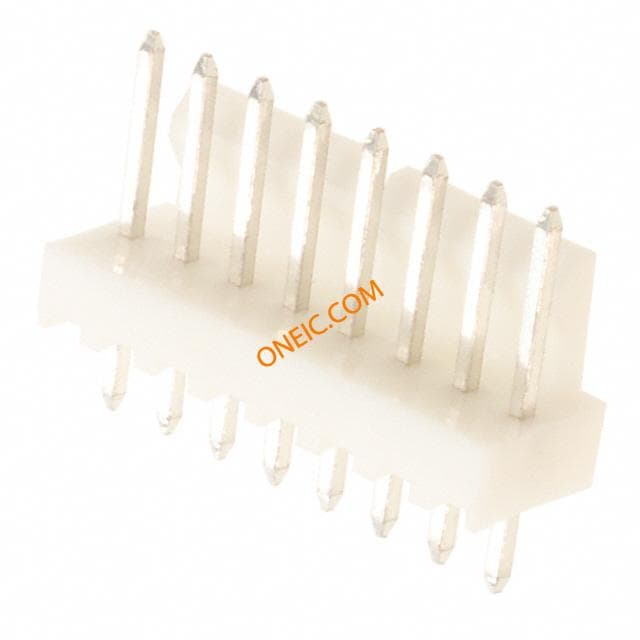

0022232081

molex

Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT TIN

¥1.5178

详情

0022272081

molex

Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT TIN

¥1.7075

详情

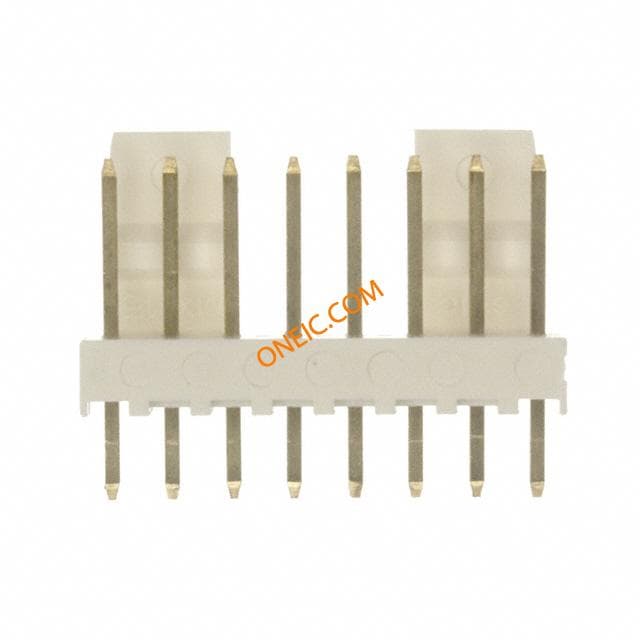

0022292081

molex

Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT GOLD

¥4.3166

详情

0022122084

molex

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A GOLD

¥4.9062

详情

0022112082

molex

Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT GOLD

¥3.9433

详情

0022052081

molex

Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A TIN

¥2.8084

详情

22-28-4085

molex

Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT GOLD Headers & Wire Housings HDR VT 1X08P .1 295/120 15AU

¥1.2376

详情

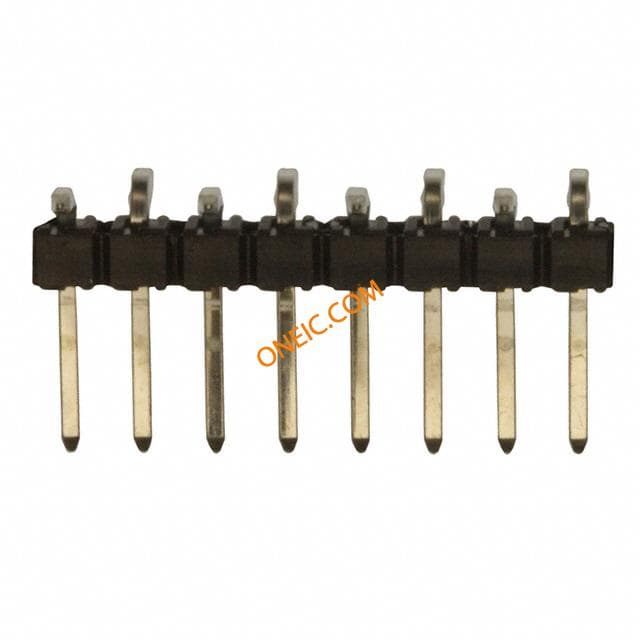

68301-1019

Molex

Headers & Wire Housings 2.54MM SR SMT 8P HDR VERT W/O SHROUD CONN HEADER 8POS .100" VERT TIN

详情

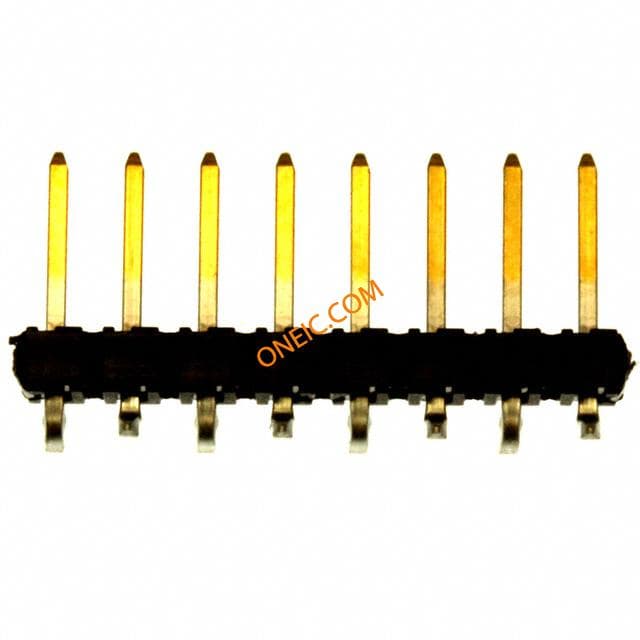

68301-1013

Molex

Headers & Wire Housings Cust. Header 100 SMT 8 CKT CONN HEADER 8POS .100" VERT 15AU

详情

0022053081

Molex

Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A TIN

¥1.8803

详情

22-28-4082

molex

Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT TIN

¥0.9588

详情

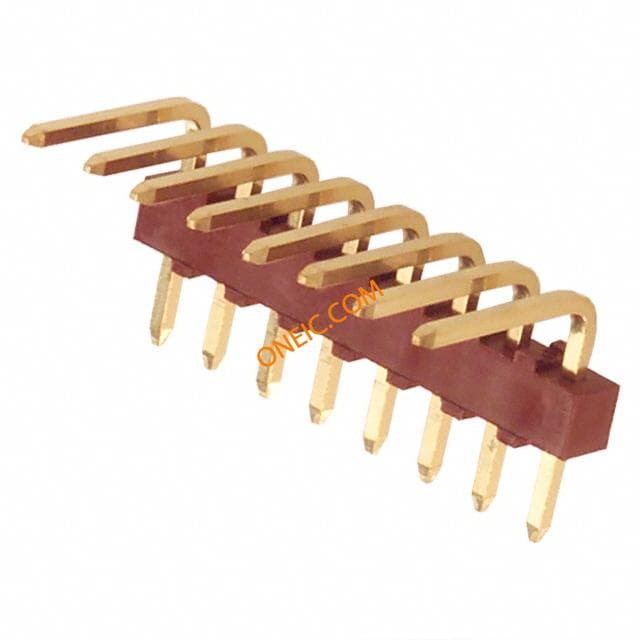

22-12-2081
