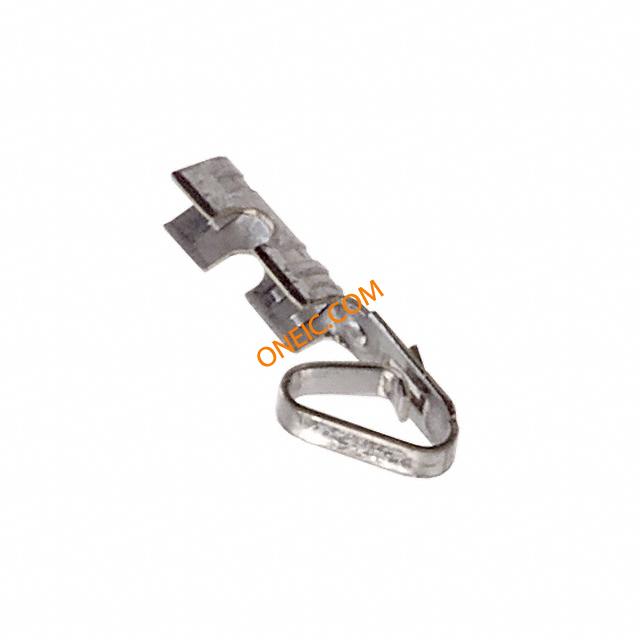

0008500114

制造商	Molex, LLC
描述	Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	子类别	Connector Contact
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

接触电阻	20 mohm	最大额定电流	4 A
最小供电电压	250VAC

机械参数

深度	2 mm	间距	Not Required mm
高度	3.68 mm	包装方式	Bag
导线线规	22-30 AWG	端接方式	Crimp
触头类型	Signal	外壳颜色	Not Required
安装类型	Straight	插针或插孔	Non-Gendered
连接器类型	Connector Headers and PCB Receptacles	接触镀层	Tin Over Nickel
安装样式	Cable	触头材料	Brass
壳体材料	Not Required	总长度	9.7 mm
触点数	Not Required	接触件端接	Crimp
接触镀层厚度	100µin (2.54µm)

产品信息

类型	Contact	连接器性别	SKT
行业别名	08-50-0114, 08500114, 8500114	适用产品/相关产品	0008500113

文档与媒体

PDF 文档

0008500114_CRIMP_TERMINALS.pdf

相关型号

0022012047

molex

Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/RAMP

¥0.2822

详情

0638111000

molex

Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG

¥330.4800

详情

0022011042

molex

Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 4POS 2.5MM

¥1.1084

详情

0022013067

molex

Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 6POS .100 W/RAMP/RIB Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag

¥0.5352

详情

0022013057

molex

Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 5POS .100 W/RAMP/RIB

¥0.5928

详情

0022011022

molex

Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM

¥0.8745

详情

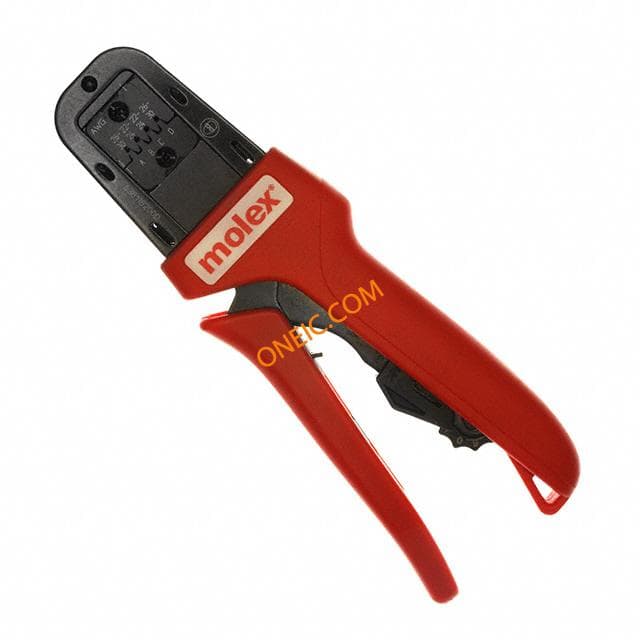

0638118200
