点击放大查看
0022011022
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM |
| 分类 |
商业参数
| 交货时间 | 48 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact A | 最小输入电压 | 250VDC|250VAC |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Natural | 深度 | 12.7 mm |
| 间距 | 2.5 mm | 高度 | 6.6 mm |
| 包装方式 | Bag | 触头类型 | Non Gendered |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 排数 | 1 |
| 壳体材料 | Nylon 66 | 总长度 | 5.5 mm |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 已删除 | Compliant |
| 产品特性 | Polarizing Key | 行业别名 | 22-01-1022, 22011022 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0008500113
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0008560109
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD
0008550131
Molex, LLC
. 0008550131 - Non-Gendered Contact Gold 22-30 AWG Crimp from Molex. from now!
0008550101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD
PFC500-1028F
power-one
AC/DC Power Supply Single-OUT 28V 17.9A 500W 9-Pin SINGLE OUTPUT 375W 28V WITH FAN 500 WATT SWITCHING POWER SUPPLY; WITH FAN; PFC MEETS EN61000-3-2; 28V @ 17.9A Linear and Switching Power Supplies 500W 28V 17.9A PowerSupply;AC-DC;28V@17.9A;85-264VIn;Enclosed;PanelMount;PFC;PFCSeries
0008500114
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0008510108
molex
Contact SKT Crimp ST Cable Mount Reel KK 100 CRIMP TERM 22-30AWG TIN
0008550102
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-30AWG GOLD
0008500159
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM CRIMP 22-30AWG TIN
0022051022
Molex
Conn Wire to Board HDR 2 POS 2.5mm Solder RA Thru-Hole Bag CONN HEADER 2POS 2.5MM R/A TIN

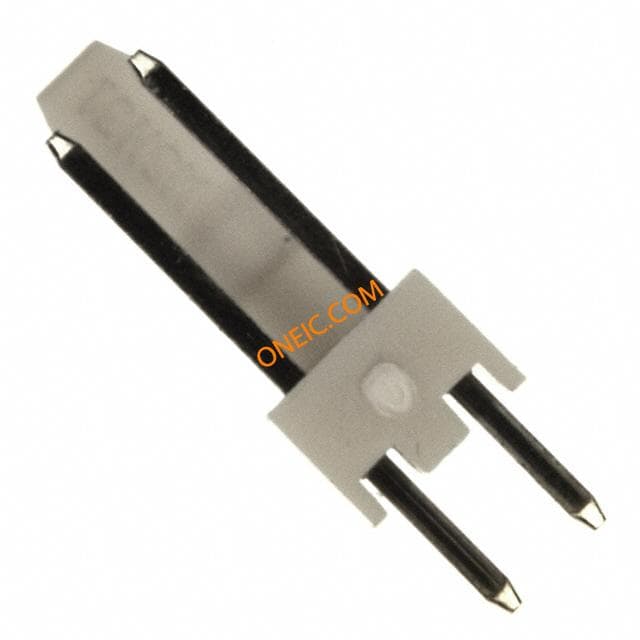

22-04-1021
molex
Conn Wire to Board HDR 2 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 2POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2P HEADER CONNECTOR, HEADER, THT, 2.5MM, 2WAY Molex Mini-Latch 系列 2.5mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
0008500160
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM CRIMP 22-30AWG TIN
0050291638
Molex
Contact SKT Crimp ST Cable Mount KK 100 CRP TERM STD 22-30 AWG
0008550130
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 22-30 AWG GOLD
08-56-0110
Molex Connector Corporation
CONN TERM FEMALE 22-30AWG GOLD Crimp terminal,KK100,2759,sgold,22-30awg Headers & Wire Housings CRIMP TERM 22-30 GLD Contact SKT Crimp ST Cable Mount Loose Piece CRIMP TERMINAL, 22-30AWG .100 SERIES CRIMP TERMINAL; GOLD IN CONTACT AREA; 22-30AWG Molex KK 254 系列 母 压接接线端子, 压接, 镀金镀镍触点

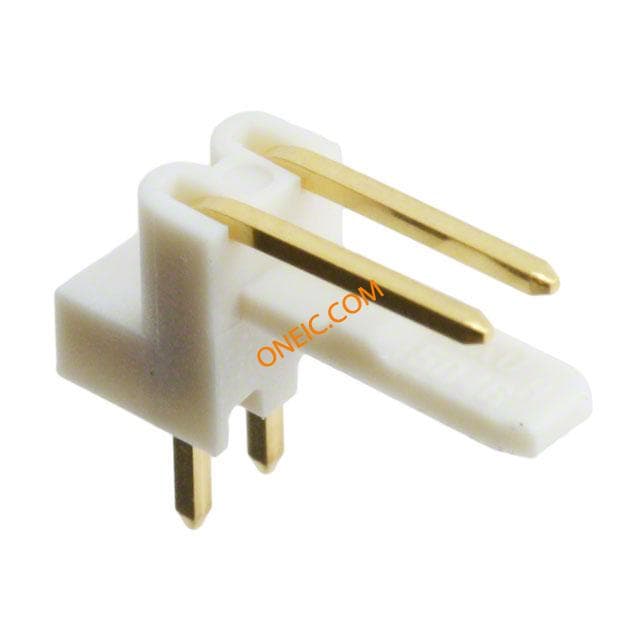

22-12-1022
