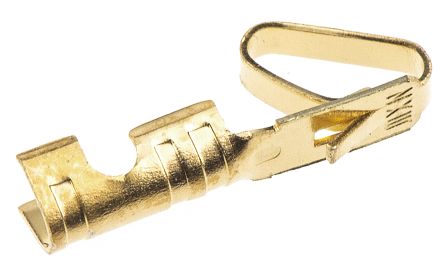

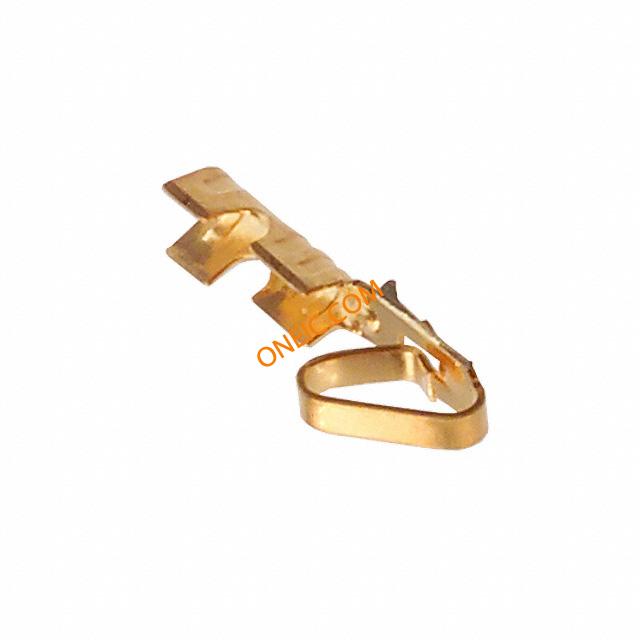

点击放大查看
08-56-0110
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 22-30AWG GOLD Crimp terminal,KK100,2759,sgold,22-30awg Headers & Wire Housings CRIMP TERM 22-30 GLD Contact SKT Crimp ST Cable Mount Loose Piece CRIMP TERMINAL, 22-30AWG .100 SERIES CRIMP TERMINAL; GOLD IN CONTACT AREA; 22-30AWG Molex KK 254 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008560110 2759-(550)L 8560110 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.13 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 端接方式 | Crimp |
| 插针或插孔 | Non-Gendered | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - AWG | :30AWG |
产品信息
| 连接器性别 | Female | 系列 | 2759 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :- |
环境参数
| 工作温度 | +75°C | ||
