点击放大查看

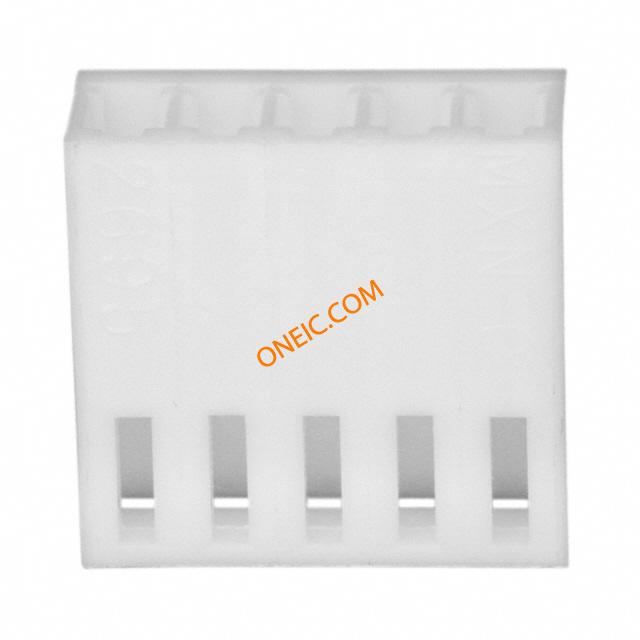

22-01-2051

制造商	Molex, LLC
描述	Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 5POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,5w Headers & Wire Housings 5 CKT TERM HOUSING .100 IN TERMINAL HOUSING; W/O LOCK RAMP; 5 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 5 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0022012051 2695-05
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	2500

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

连接器类型 - 电压输入

Female

机械参数

颜色	White	深度	12.7mm
间距	0.100" (2.54mm)	宽度	4.82mm
长度	13.26mm	包装方式	Bulk
方向	直	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
排数	1	壳体材料	Nylon
触点数	5	接触件端接	Crimp
位数	5

产品信息

备注	Contacts Not Provided	类型	Crimp Housing
连接器性别	Female	系列	2695
CAD图纸	3D CAD Model	产品子类型	Wire Housings
基础产品编号	2695	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

22-01-2051

PDF 文档

1739195.pdf

相关型号

0022284050

molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN

¥1.0071

详情

0022122054

molex

Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 5POS .100 R/A GOLD

¥3.6020

详情

0022272051

molex

Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru

¥1.3328

详情

0022053051

molex

Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 5POS .100 R/A TIN

¥1.8564

详情

22-28-4057

Molex

Headers & Wire Housings 2.54MM HDR VT 5P 320/120 30AU CONN HEADER 5POS .100 VERT GOLD Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag

¥1.1084

详情

暂无图片

22-28-8054

molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 5POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 05 Ckt 30 SGold

¥1.3396

详情

68301-1006

Molex

Headers & Wire Housings .100 SR SB Vert. SMT Hdr 5 CKT CONN HEADER 5POS .100" VERT 15AU

详情

68301-1016

Molex

Headers & Wire Housings 2.54MM BREAKAWAY Vertical 5 CKT CONN HEADER 5POS .100" VERT TIN

详情

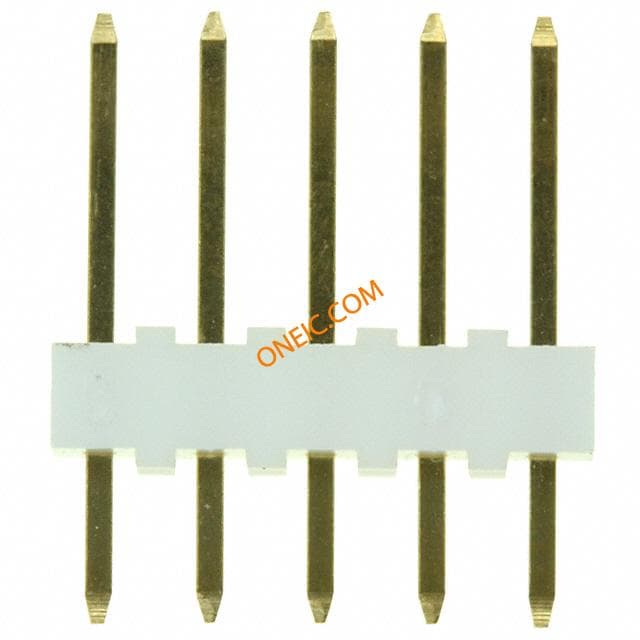

22-10-2051

molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 5POS .100 VERT GOLD Headers & Wire Housings VERT PCB HDR 5P GOLD PLATING Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag

¥2.4616

详情

22-28-4058

molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT GOLD

¥0.6650

详情

0022284051

Molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN

¥1.2689

详情

0022032051

Molex

Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 5POS .100 VERT TIN

¥1.1911

详情

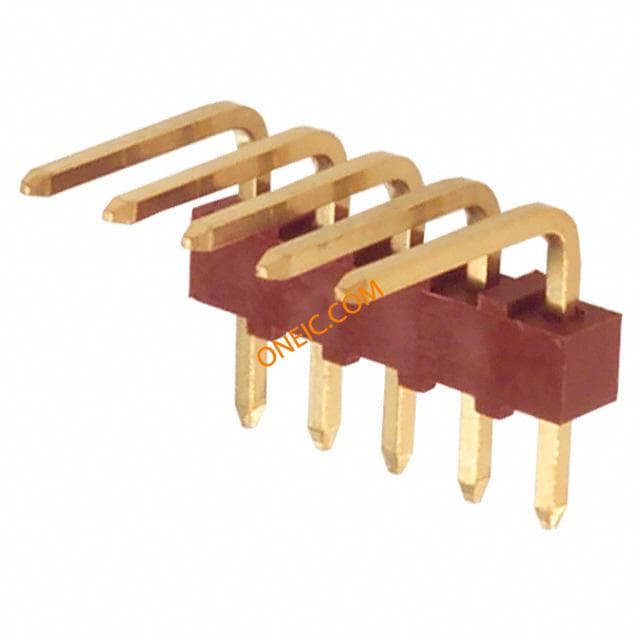

22-12-2051

Molex Connector Corporation

CONN HEADER 5POS .100 R/A GOLD Headers & Wire Housings 5 PIN R/A HEADER Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Bag

¥2.4344

详情

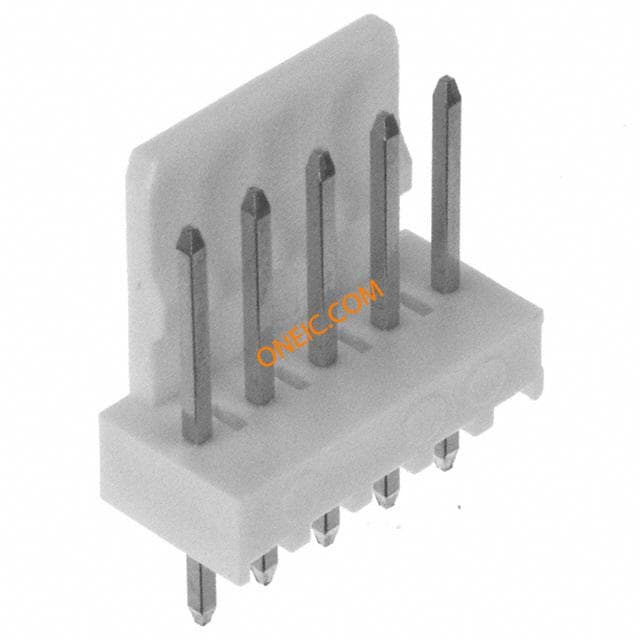

22-29-2051
