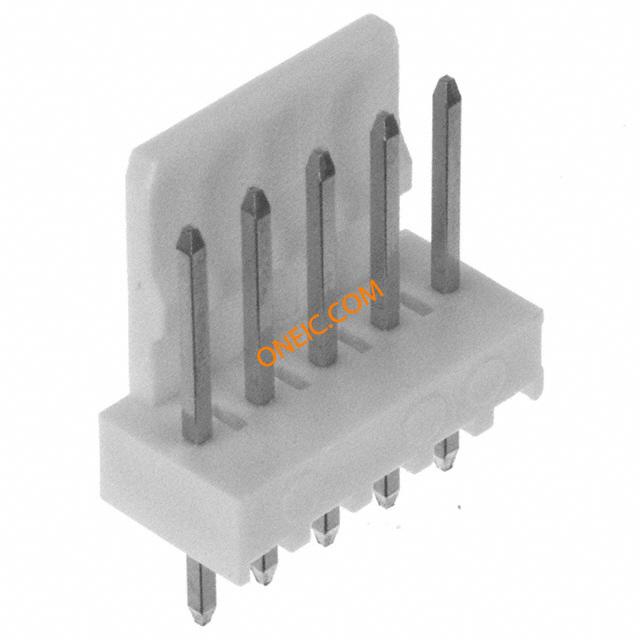

点击放大查看
22-29-2051
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 5POS .100 VERT GOLD Molex 6410 Series 2.54mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 5P VERT WIRE-BD HDR W/FRICTION LCK AU Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Bag HEADER, VERTICAL, SQ PIN, 0.1", 5WAY Molex KK 254 系列 2.54mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022292051 AE-6410-05A(501) |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 6410 Series | 额定电压 | 250 V |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 最大额定电流 | 4A | ||
机械参数
| 颜色 | Natural | 间距 | 0.100" (2.54mm) |
| 重量 | 0.000571 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 材料表面处理 | :- | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 5 | 接触件端接 | :Through Hole Vertical |
| 位数 | 5 | 接触长度 - 配合 | 0.295" (7.49mm) |
| 接触镀层厚度 | 20µin (0.51µm) | 外部壳体材料 | :Nylon UL94V-0 |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 6410 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :75°C | ||
