点击放大查看

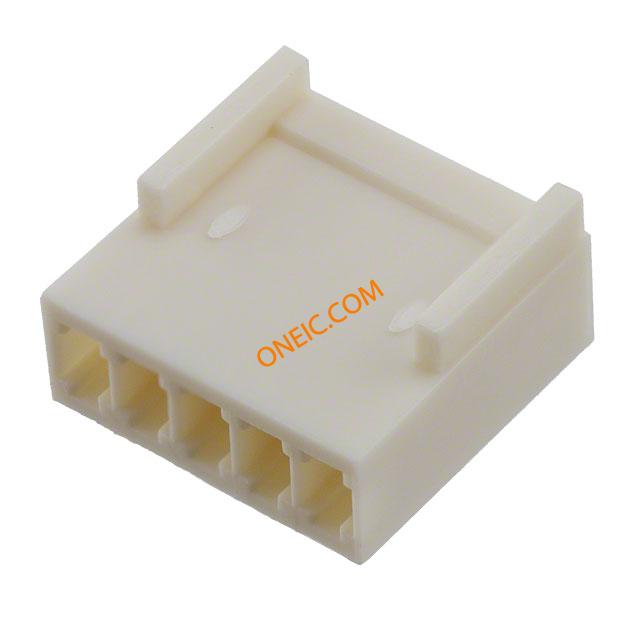

0022011052
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 5 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 2.5MM |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact A | 最小输入电压 | 250VDC|250VAC |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Natural | 深度 | 12.7 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 6.6 mm |
| 包装方式 | Bag | 触头类型 | Non Gendered |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 排数 | 1 |
| 壳体材料 | Nylon 66 | 总长度 | 13 mm |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | 已删除 | Compliant |
| 产品特性 | Polarizing Key | 行业别名 | 22-01-1052, 22011052 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0008500113
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0008560109
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD
0008550131
Molex, LLC
. 0008550131 - Non-Gendered Contact Gold 22-30 AWG Crimp from Molex. from now!
0008550101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG GOLD
0008500114
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0008510108
molex
Contact SKT Crimp ST Cable Mount Reel KK 100 CRIMP TERM 22-30AWG TIN
0008550102
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-30AWG GOLD
0008500159
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM CRIMP 22-30AWG TIN
0008500160
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM CRIMP 22-30AWG TIN
0050291638
Molex
Contact SKT Crimp ST Cable Mount KK 100 CRP TERM STD 22-30 AWG
0008550130
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 22-30 AWG GOLD
08-56-0110
Molex Connector Corporation
CONN TERM FEMALE 22-30AWG GOLD Crimp terminal,KK100,2759,sgold,22-30awg Headers & Wire Housings CRIMP TERM 22-30 GLD Contact SKT Crimp ST Cable Mount Loose Piece CRIMP TERMINAL, 22-30AWG .100 SERIES CRIMP TERMINAL; GOLD IN CONTACT AREA; 22-30AWG Molex KK 254 系列 母 压接接线端子, 压接, 镀金镀镍触点

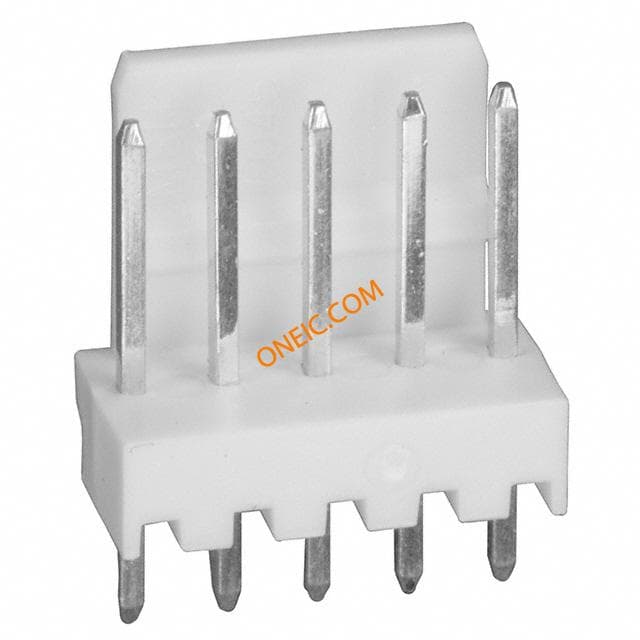

22-04-1051
Molex Connector Corporation
CONN HEADER 5POS 2.5MM VERT TIN Molex 5045 Series 2.5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings STRT HEADER 5P polarizing lock Conn Wire to Board HDR 5 POS 2.5mm Solder ST Thru-Hole Bag HEADER, SQUARE PIN, 2.5MM, 5WAY Molex Mini-Latch 系列 2.5mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
22-05-1052
Molex Connector Corporation
CONN HEADER 5POS 2.5MM R/A TIN Molex 5046 Series 2.5mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 5P R/A HEADER Conn Wire to Board HDR 5 POS 2.5mm Solder RA Thru-Hole Bag HEADER, R/A, SQ PIN, 2.5MM, 5WAY Molex Mini-Latch 系列 2.5mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔

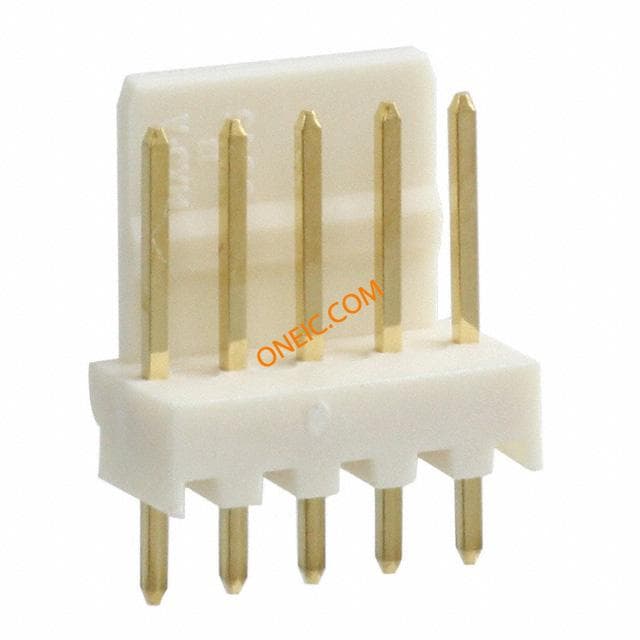

22-11-1051
