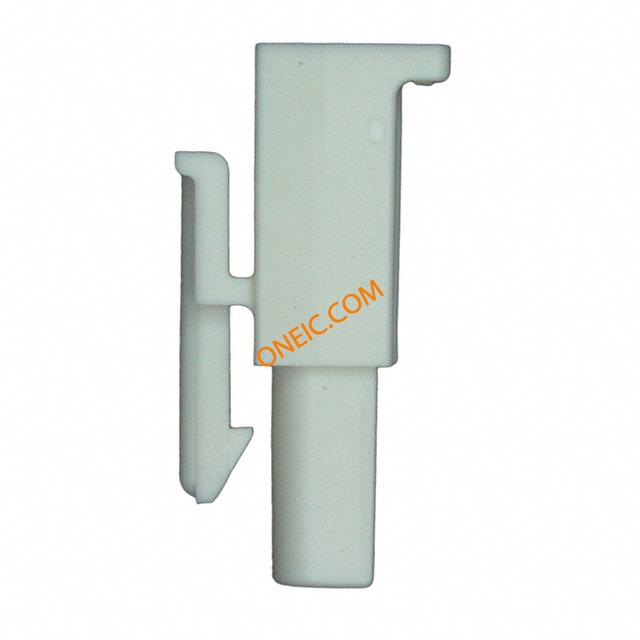

19-09-1016

制造商	Molex, LLC
描述	CONN RECEPTACLE 1POS .093 Pin & Socket Connectors NYLON RECEPTACLE 1P 2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing with Positive Latch, UL 94V-0, 1 Circuit PLUG AND SOCKET CONNECTOR HOUSING
分类	连接器解决方案压接与焊接端子/接头压接插座

对参数有疑问？问 AI 助手

商业参数

商标名	Standard .093 in	零件号别名	0019091016 3191-1R1-201
产品类别	Pin & Socket Connectors	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

海关税号

00000000

电气参数

最大额定电流

12 A

机械参数

颜色	White	间距	6.71 mm
重量	0.00136	包装方式	Bulk
触头类型	Male or Female	基体材料	:PA Polyamide (Nylon) 6/6
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Latch Lock	排数	1
线缆终端	:Crimp	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Pin (Male), Socket (Female)
触点数	1	接触件端接	Crimp
位数	1

产品信息

备注	Contacts Not Provided	系列	3191
产品子类型	Receptacle Housings	适用产品/相关产品	:1189, 1190, 1434, 2605 Crimp Terminals

文档与媒体

PDF 文档

19-09-101x,201x,601x

PDF 文档

0019091016_CRIMP_HOUSINGS.pdf

相关型号

0002091119

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4896

详情

0002092116

molex

Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN

¥0.2561

详情

0002092118

molex

Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag

¥0.4536

详情

0002092101

Molex

Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor

¥0.1884

详情

0002092103

molex

Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN

¥0.5025

详情

暂无图片

0039000295

molex

Contact SKT Crimp ST Cable Mount Bag .093 TERMINAL GOLD 1189AGL

¥4.2214

详情

02-09-5132

molex

CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag

¥2.8560

详情

02-09-6145

Molex

Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD

详情

暂无图片

02-09-1139

Molex

Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag

¥0.2720

详情

暂无图片

0039000289

Molex

Contact SKT Crimp ST Cable Mount Bag TERMINAL .093 CRIMP PIN 1189ATL

¥0.9513

详情

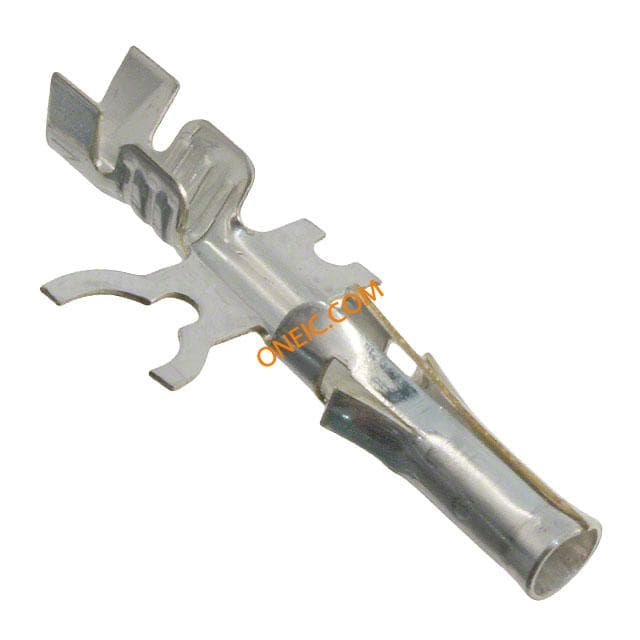

0039000285

Molex

Contact SKT Crimp ST Cable Mount Reel TERM FEMALE 18-24AWG CRIMP TIN

¥0.2040

详情

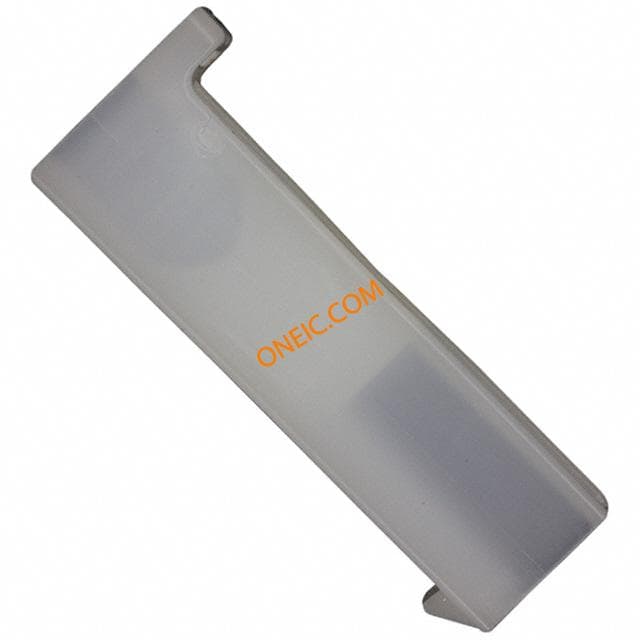

19-09-2019

Molex Connector Corporation

CONN PLUG 1POS .093 Pin & Socket Connectors 2.36MM 1P PLG HSG W/POS LATCH 2.36mm Diameter Standard .093" Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 1 Circuit .093" Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel M

¥0.7273

详情

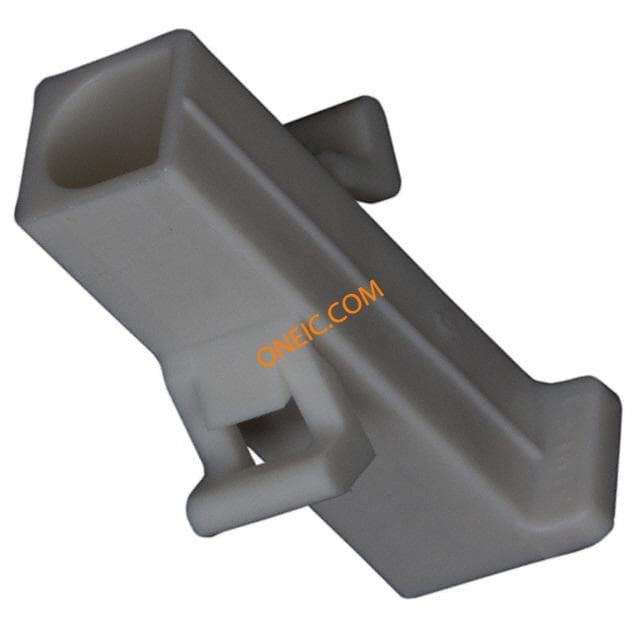

19-09-2017
