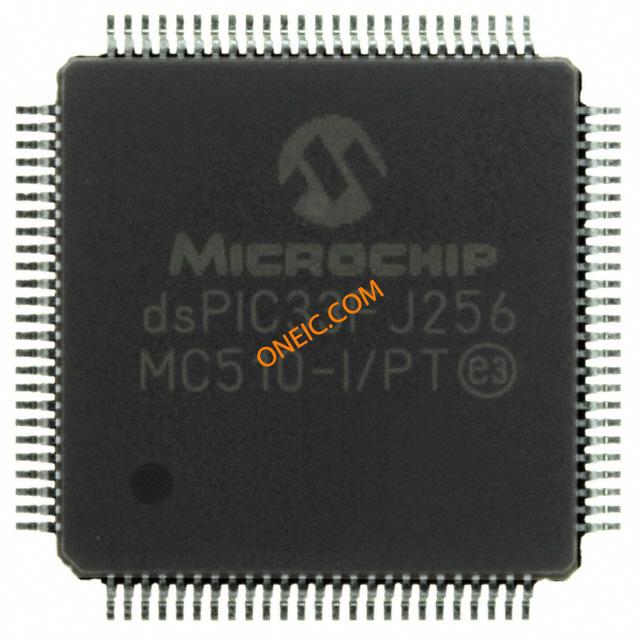

DSPIC33FJ256MC510-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 256KB Flash 3.3V 100-Pin TQFP Tray IC DSC 16BIT 256KB FLASH 100TQFP Digital Signal Processors & Controllers - DSP, DSC 40MIPS 256KB IC, 16BIT MCU-DSP, 256KB FLASH, SMD |
| 分类 |
商业参数
| 产品 | DSCs | 其他名称 | DSPIC33FJ256MC510IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 119 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 转速 | 40 MHz | RAM 大小 | 16 KB |
| 内核大小 | 16-Bit | 核心类型 | dsPIC |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 存储器容量 | 16 KB | I/O 数量 | 85 |
| 位数 | :16 | 核心电压 | :2.75V |
| 看门狗定时器 | 1 | 数据转换器 | A/D 24x10b/12b |
| 振荡器类型 | Internal | 供电电压 | 3.3 V |
| 程序存储器大小 | 256 KB | 程序存储器类型 | Flash |
| 工作频率 | :40MHz | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 重量 | 0.02 | 包装方式 | Tray |
| 端接方式 | :SMD | 安装样式 | SMD/SMT |
| 引脚数 | :100 | 封装形式 | 100TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 位数 | :33FJ256MC510 |
| 供应商器件封装 | 100-TQFP (12x12) | 核心数/总线宽度 | 16 Bit |
产品信息
| 类型 | :Fixed / Floating Point | 系列 | DSPIC33F |
| 产品特性 | CAN Controller | 基本单元 | :33 |
| 闪存大小 | :256KB | 片内RAM（通道数×位宽） | 24-chx12-bit |
| 外设 | Brown-out Detect/Reset, DMA, Motor Control PWM, QEI, POR, PWM, WDT | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 核心处理器 | dsPIC | 定时器数量 | 9 |
| 射频系列/标准 | dSPIC33 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
