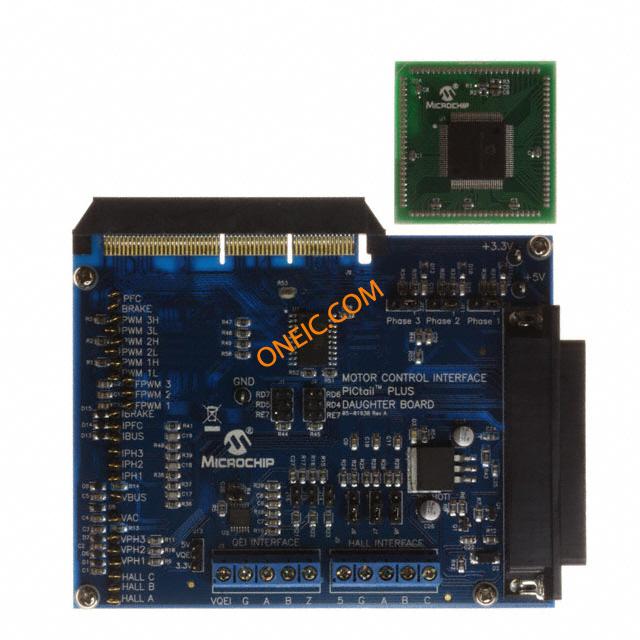

AC164128
| 制造商 | Microchip Technology Inc. |
| 描述 | PIC Tail Plus Motor Control Daughter Card Daughter Cards & OEM Boards dsPICDEM Motor Cntrl PICtail Plus dsPICDEM Motor Control PICtail Plus BOARD MOTOR CTRL PICTAIL PLUS |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Motor Control Daughter Cards |
| 单位包装 | 1 | 产品类别 | Daughter Cards & OEM Boards |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 核心类型 | dsPIC | ||
机械参数
| 核心数/总线宽度 | 16 bit | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | Yes, MCU, 16-Bit | 功能 | PICtail Plus Motor Control Daughter Card |
| 主要用途 | Power Management, Motor Control | 主要特性 | Brushless DC (BLDC) Motors, 3-Phase, 1A, LIN, SPI, PWM Interface |
| 使用的IC/零件 | DM240001, dsPIC33F | 次要特性 | Explorer 16 Bridge Board |
| 适用产品/相关产品 | DM240001, DM300021, DM300022 | ||
文档与媒体
相关型号
DSPIC33FJ128MC706-I/PT
microchip
MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 64-Pin TQFP Tray 16 bit MCU / DSP TQFP64 IC DSC 16BIT 128KB FLASH 64TQFP DSPIC33FJ128MC706-I/PT, 16 bit Microcontroller dsPIC 40MIPS 128kb Flash, 16kb RAM, I2C SPI 64-Pin TQFP Digital Signal Processors & Controllers - DSP, DSC 16 Bit MCU/DSP 64LD 40 MIPS 128KB Flash IC, 16BIT MCU/DSP 128K FLASH, SMD IC, SM 16BIT MCU/DSP 128K, WAFFLE80 16-BitMCU/DSP64LD40MIPS128KBFlash DsPIC microcontroller; Memory:128kB; SRAM:16384B; TQFP64; 3÷3.6V Micro 16b, 128KB Fl, DSPIC33FJ128MC706 dsPIC33FJ 128K TQFP64 85°C
AC164128
microchip
PIC Tail Plus Motor Control Daughter Card Daughter Cards & OEM Boards dsPICDEM Motor Cntrl PICtail Plus dsPICDEM Motor Control PICtail Plus BOARD MOTOR CTRL PICTAIL PLUS
DM300021
microchip
DSPICDEM MC1H 3-PHASE HIGH VOL Development Boards & Kits - PIC / DSPIC High V Pwr Module DM300021, Module, 16 bit, dsPIC, CD with Documentation & Software, Power Module POWER MODULE, DSPICDEM, MC1H, MOTOR DSPICDEMMC1H3-PHASEHIGHVOLTAGEPOWERMODULE 3-phase high voltage module; Works with: DM300020 Microchip 16 位 MCU 微控制器开发套件
DM300022
microchip
DSPICDEM MC1L 3-PHASE LOW VOLT Development Boards & Kits - PIC / DSPIC Low V Pwr Module DM300022, Module, 16 bit, dsPIC, CD with Documentation & Software, Power Module Power Management IC Development Tools Low V Pwr Module DSPICDEMMC1L3-PHASELOWVOLTAGEPOWERMODULE 3-phase low voltage module; Works with: DM300020 Microchip 16 位 MCU 微控制器开发套件
DM240001
microchip
Explorer 16 Demonstration Board For 6-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC PICDEM PIC24/dsPIC33 EXPLORER 16 KIT PICDEM PIC24/dsPIC33 Explorer BOARD DEMO PIC24/DSPIC33/PIC32 DM240001, Development Kit, 16 bit, PIC, Explorer 16 Demo Board PIC24, EXPLORER 16, DEV BOARD EXPLORER16DEVELOPMENTBOARD Development kit: Microchip; PIC24,PIC32,dsPIC33 Explorer 16 development board PC hosted mode 9 V, DM240001, Microchip Microchip 16 位 MCU 微控制器开发套件
AC300022
microchip
AC300022 ?-?24V 3-PHASE BRUSHL AC, DC & Servo Motors 24V 3Phase Brushless DC motor w/encoder 3-Phase Brushl.DC Motor/Encod. MOTOR DC 3PHASE 24V W/ENCODER Accessory, Power Management BLDC MOTOR, 3 PHASE, W / ENCODER 24V3-PhBLDCMotorwithEncoder Microchip BLDC 电机 , 使用于DM183021，DM300022，DM330021
AC300020
microchip
Evaluation Board For 24V BLDC Motor With Cables AC, DC & Servo Motors Motor 24V BLDC Motor, 24V BLDC Accessory, Power Management BLDC MOTOR, 3 PHASE, FOR DM300022 dsPICdemo,Motor,3-phaseACIM Microchip BLDC 电机 , 使用于DM183021，DM300022
