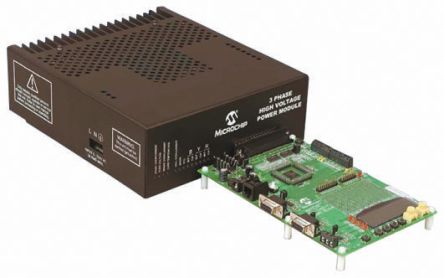

DM300021
| 制造商 | Microchip Technology Inc. |
| 描述 | DSPICDEM MC1H 3-PHASE HIGH VOL Development Boards & Kits - PIC / DSPIC High V Pwr Module DM300021, Module, 16 bit, dsPIC, CD with Documentation & Software, Power Module POWER MODULE, DSPICDEM, MC1H, MOTOR DSPICDEMMC1H3-PHASEHIGHVOLTAGEPOWERMODULE 3-phase high voltage module; Works with: DM300020 Microchip 16 位 MCU 微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Development Kits | 产品类别 | Development Boards & Kits - PIC / DSPIC |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | dsPIC | 输出功率 | 1kW |
| 元件数量 | :dsPIC30F | ||
机械参数
| 重量 | 0.4 | 核心数/总线宽度 | 16 bit |
产品信息
| 产品特性 | :This Power Module is Intended for AC Induction Motor and Power Inverter that Operate from AC Voltage | 套件类型 | :Power Management - Motor Control |
| 技术 | 16 bit | 套件内容 | CD with Documentation & Software, Power Module |
| 卡标准 | Module | 附件类型 | 3-phase high voltage module |
| 单元数量 | 1 | 关联项目 | DM300020 |
| 工具类型/特性 | :Power Module | 芯片组制造商 | :Microchip |
| 应用细节 | :3 Phase Motor | 可编程特性 | for motor-control applications in 3-phase networks |
| 支持MCU系列 | :dsPIC30F | ||
相关型号

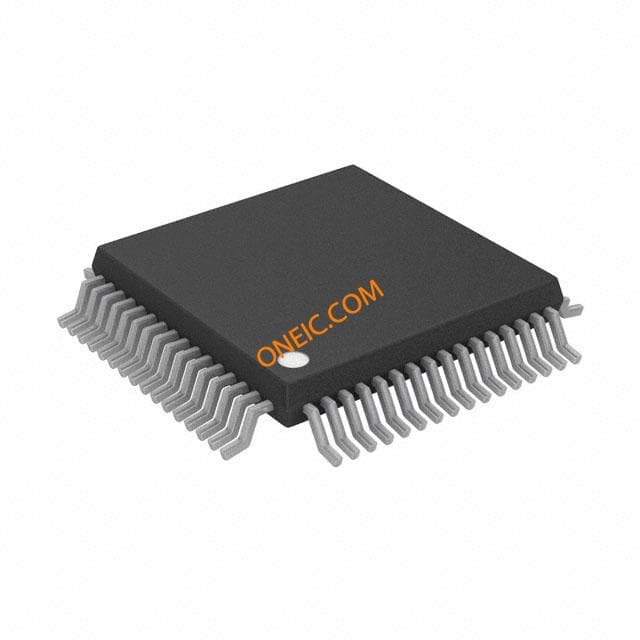

DSPIC30F6012A-30I/PF
